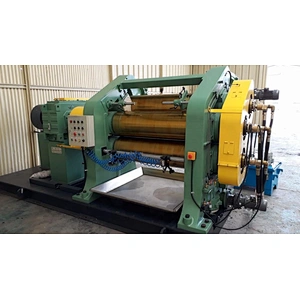

Hot Selling! Wax Fabric Calender Machine Customizable 3-roll Rubber Calender Machine with CE ISO New Price

Hot Selling! Wax Fabric Calender Machine Customizable 3-roll Rubber Calender Machine with CE ISO New Price

Model NO.: Wax Fabric Calender Machine Customizable 3-roll Rubber Calender Machine with CE ISO New Price
Minimum order quantity: 1 set
Supply Ability: 100.0 set / Month
Country of Origin: Qingdao

Quantity:

Product Description

After-sales Service Provided:Engineers available to service machinery overseas
Type:rubber calender
working diameter of rolls:450
working length of rolls:1400
friction ratio of front and rear roll:1:1:1 1:1.5:1
capacity per bath(mix-up stock)kg/h:500
Driven motor power(kw):75
Weight:20000kgs
Condition:New
Video outgoing-inspection:Provided
Machinery Test Report:Provided
Marketing Type:Ordinary Product
Warranty of core components:1 Year
Core Components:Engine
Core Components:Bearing
Core Components:Gearbox
Core Components:Motor
Core Components:Gear
Core Components:Pump
Warranty:1 Year
After-sales Service Provided:Field maintenance and repair service
Key Selling Points:Automatic
After Warranty Service:Video technical support
After Warranty Service:Online support
After Warranty Service:Spare parts
After Warranty Service:Field maintenance and repair service
Applicable Industries:Manufacturing Plant
Local Service Location:India
Showroom Location:India
Place of Origin:CN;SHN
Brand Name:HUICAI
Voltage:380V
Dimension(L*W*H):5870x2420x2565
Certification:CE,ISO9001
Power (kW):75
Weight (KG):20000

Customize OEM/ODM SERVICE

WELCOME TO OUR FACTORY VIST AND NEGOTIATION

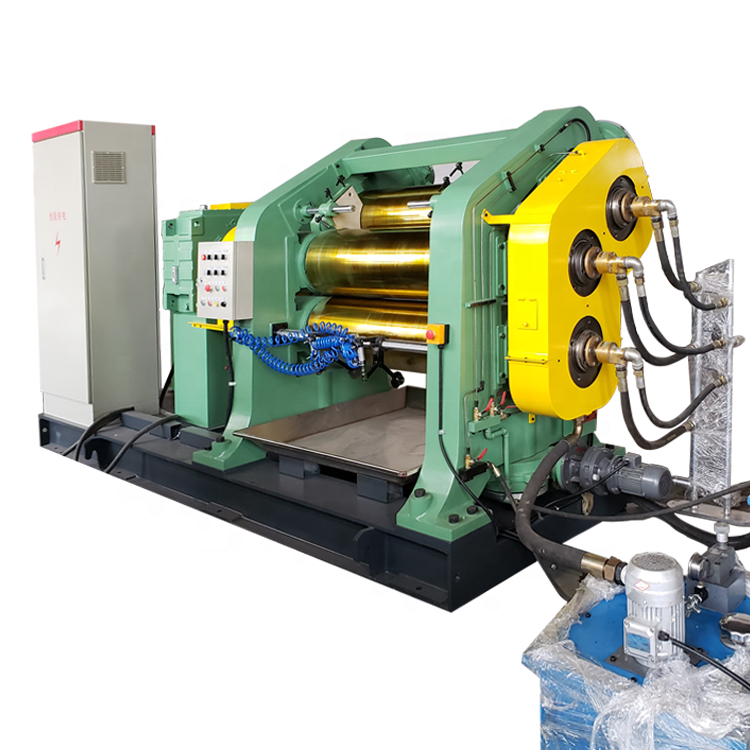

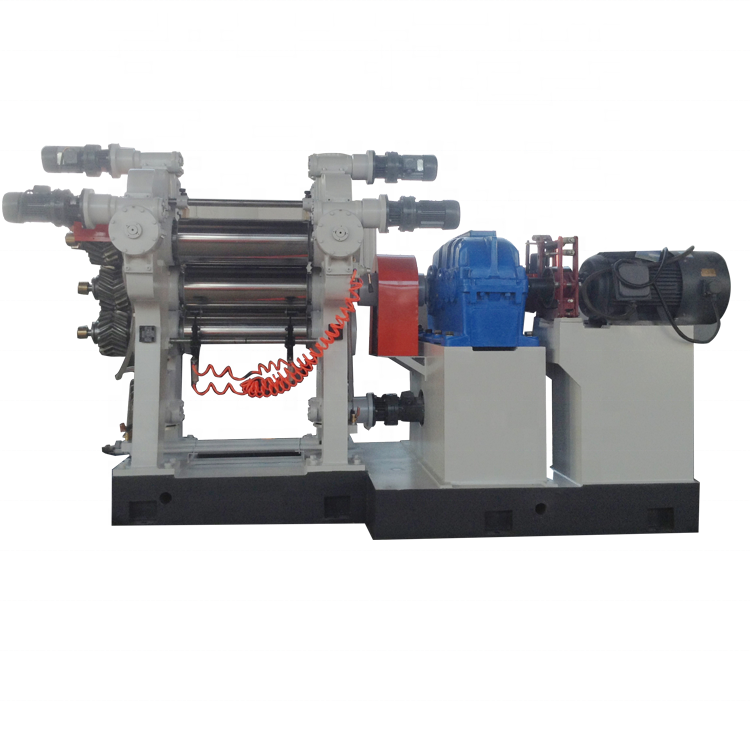

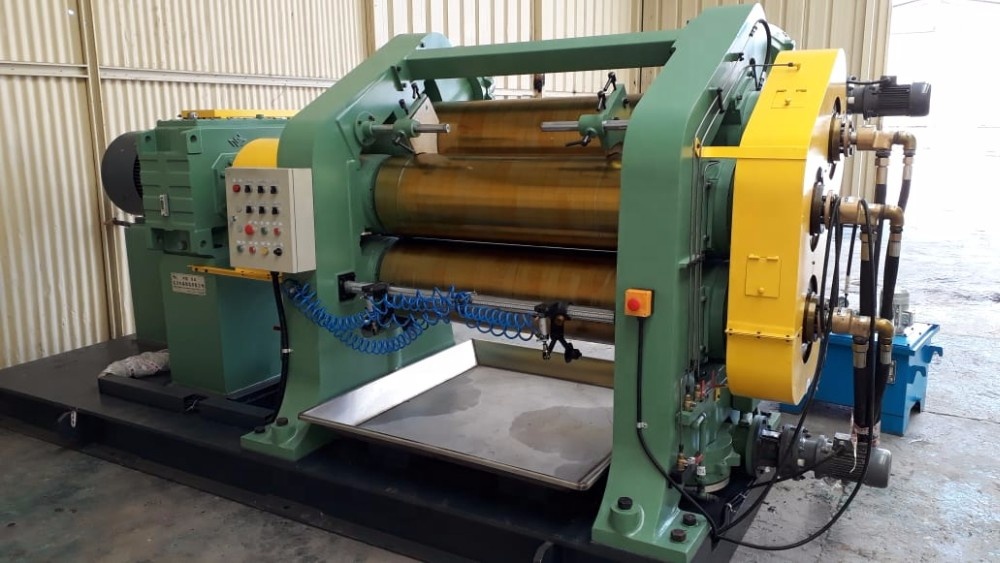

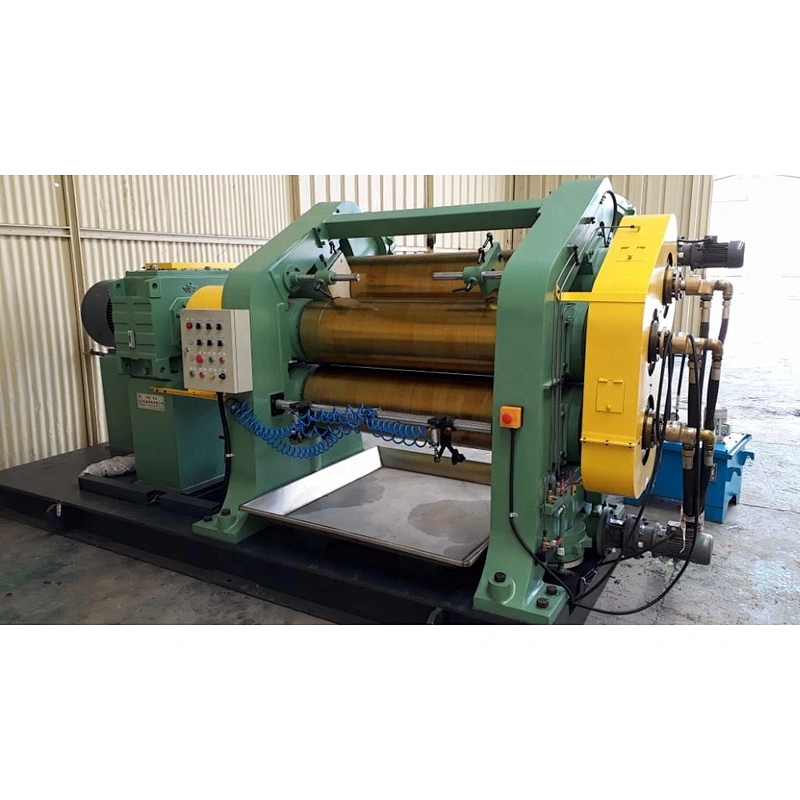

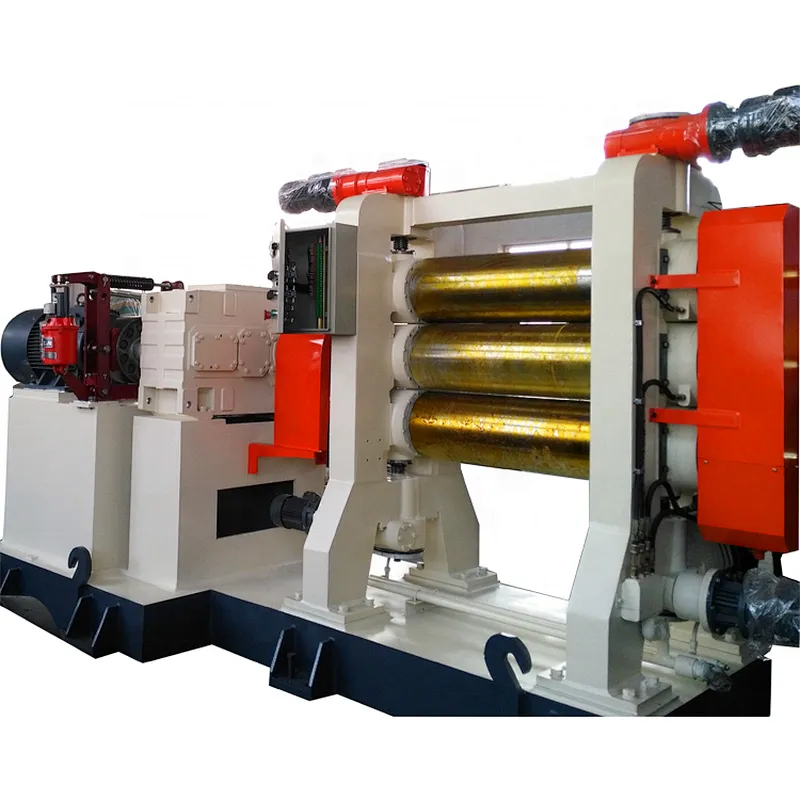

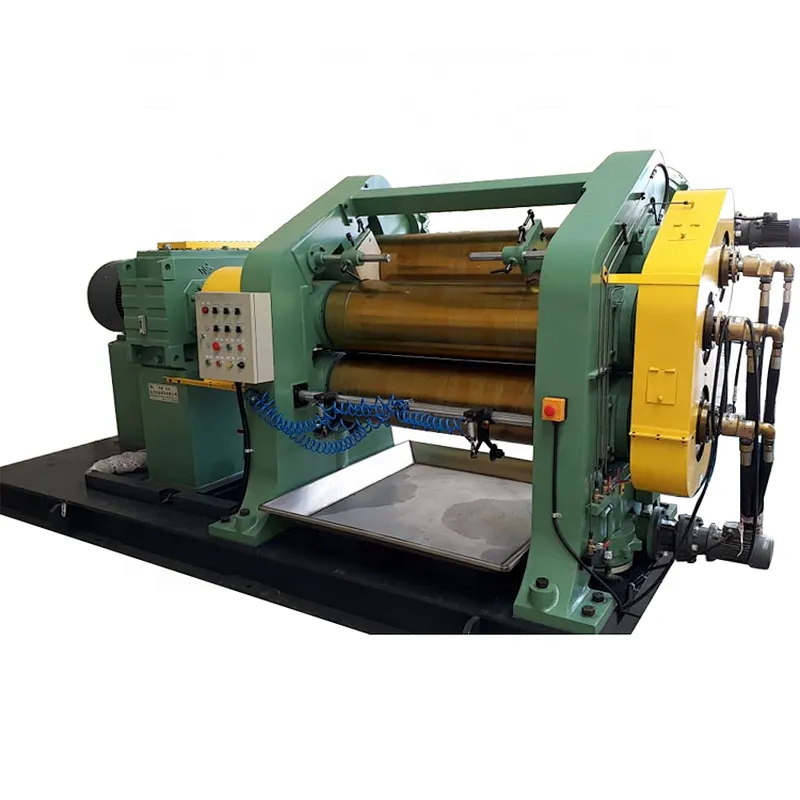

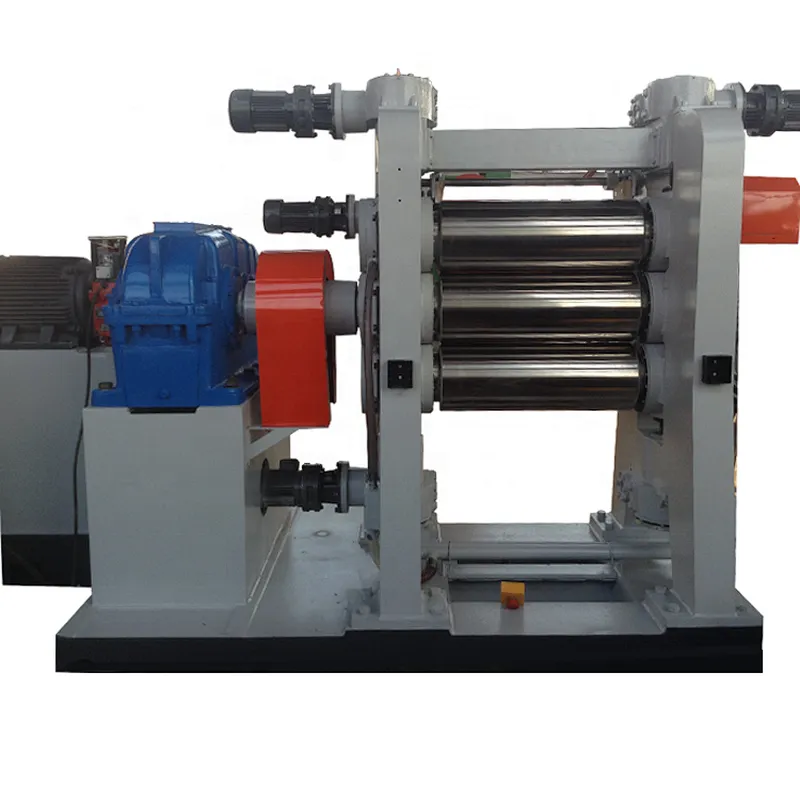

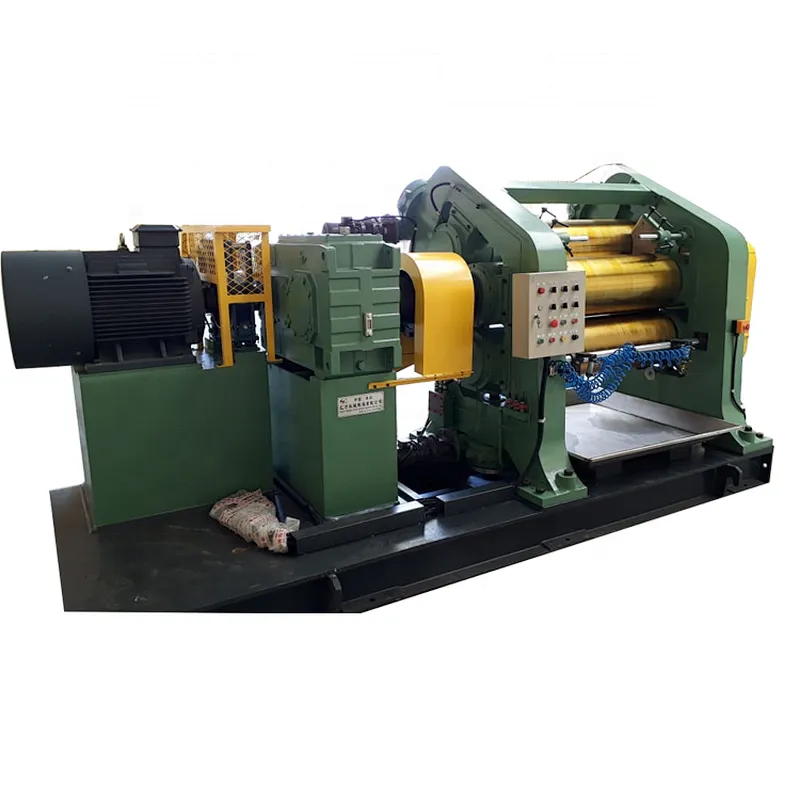

Three roll rubber calender machine/rubber calender mill

Application:

Rubberizing and fractioning of textile material ,rubberizing of wirecord fabric, sheet, and counter plate(embossed) of rubber material, separation of fabric and film, as well as joint of multi-layer laminate film.

General design:

It mainly contains roller, rack , backplane, adjustment, device , transmission system, roller temperature control device, security device ,lubricating device,etc.

Features :

1.The roller is made of chilled cast iron alloys, whose work surface has high hardness , wear-resistent and durable life. Steam , cooling water, and heat-conducting oil can pass into the rollers cavity, so that the working temperature can be adjusted in order to meet the technical requirements.

2.Roll spacing can be adjusted both by manual or electric mode .

3.Roller bearings lubricating can adopt drier oil or dilute oil.

Type	Roll Diameter mm	Roll working length mm	Speed Ratio of rolls	Middle-roll linear speed m/min	Adjusting nip range mm	Min.calendering product thickness mm	Calendering product width mm	Motor power kw	Overall size mm	Weight ton
XY-3R230X630	230	630	1:1:1 1:1.2:1	0.8-8	0-7	0.2	500	7.5	3168x890x1830	3
XY-3R252X720	252	720	1:1:1	2-15.9	0-10	0.2	550	22	3950x1720x1210	5.5
XY-3R360X1120	360	1120	1:1:1 0.733:1:1 0.733:1:0.733	3-20	0-10	0.2	920	45	6500x1500x2440	14
XY-3R400X1200	400	1200	1:1:1 1:1.383:1.383 1:1.383:1	3-26.39	0-10	0.2	1200	55	6300X1500X2440	18
XY-3R450X1400	450	1400	1:1:1 1:1.5:1	2.62-26.2	0-10	0.2	1250	75	7320X2200X2900	21
XY-3R610X1730	610	1730	1:1:1 1:1.4:1	5.4-54	0-20	0.15	1500	160	7010X3950X3730	42
XY-3R710X1800	710	1800	0.5-1	4-40	0-30	0.2	1600	90X2 110X1	9950X3050X4540	90
XY-3R710X2130	710	2130	1:1:1	8-50	0-20	0.15	1900	185	7650X4560X4080	67
XY-3R800X2500	800	2500	0.5-1	3-30	0-30	0.2	2200	132X3	11400X3200X5050	110
XY-3R860X2500	860	2500	0.5-1	4-40	0-30	0.5	2200	132X3	12000X3200X5100	130

We are professional manufacturer of machinery

About us--

QingdaoHUICAI Machine Manufacture Co., LTD.

1. has specialized in machine manufacture almost 20 years;(since 1996)

2.100% real manufacture meet all your requests;

3.CE,ISO Certification;

4.provide one year quality guarantee and long-term technical support;

5.provide all kinds of rubber machine:

Vulcanizing machine,Rubber mixing mill,Rubber crushing mill,Rubber refining mill,Rubber plastices kneading machine,Rubber injection&pressure molding machine,Vaccuum heat presses to model the machine, Hydraulic press, Rubber sheeting mill,Jaw type falt vulcanizer,Prevulcanization equipment,Hydraulic tyre vulcanizer,Automatism inner tube press vulcanizer, Foaming press; Conveyor belt production line, Sidewall belt production line, Conveyor belt forming line; Batch-off cooler (cooling line); Rubber cutteretc;

6.our machine are welcome by the world,popular in lots of markets

About Us:

We are a successful manufacturer and foreign trade company that has a good reputation of providing our customers with the best service and online buying experience in the business. Please feel free to email us or call us . Your email

will be appreciate and we reply you as soon as possible.

Notice:

we can accept FOB,CIF,CFR,EXW,etc.

Payment Item:30%TT in advance,70% balance before shipment.

Delivery Time:usually 20-30 days after recieving the deposit,customize model depends on detailed parameter

Packing:bare packing, some parts are packed in wooden case.

Import duties, taxes,charges,and all the things to clear the custom are not included in the item price or shipping charges.These charges are the buyer's responsibility.

Please check with your country's customs office to determine what these additional costs will be prior to bidding/buying.
If the items are damaged and lost during the shipping, we are not responsible of that. Please contact the shipping company.

You also can ask us to buy the insurance for you. Thank you for your cooperation.

If you are interested,please inquiry .
