- Total Volume of kneading chamber(L):125
- Total volume of mixing chamber(L):55
- Driving motor power(KW):75
- Tipping motor power(KW):3.0
- Tipping angle:140
- Rotational speed of the rotor(r/min):30/24.5(front/back)
- Flow rate of compressed air(Mpa):0.6-0.8
- Pressure of heated steam(Mpa):0.5-0.8
- Pressure of cooling water(Mpa):0.3-0.4
- Weight:7500KG

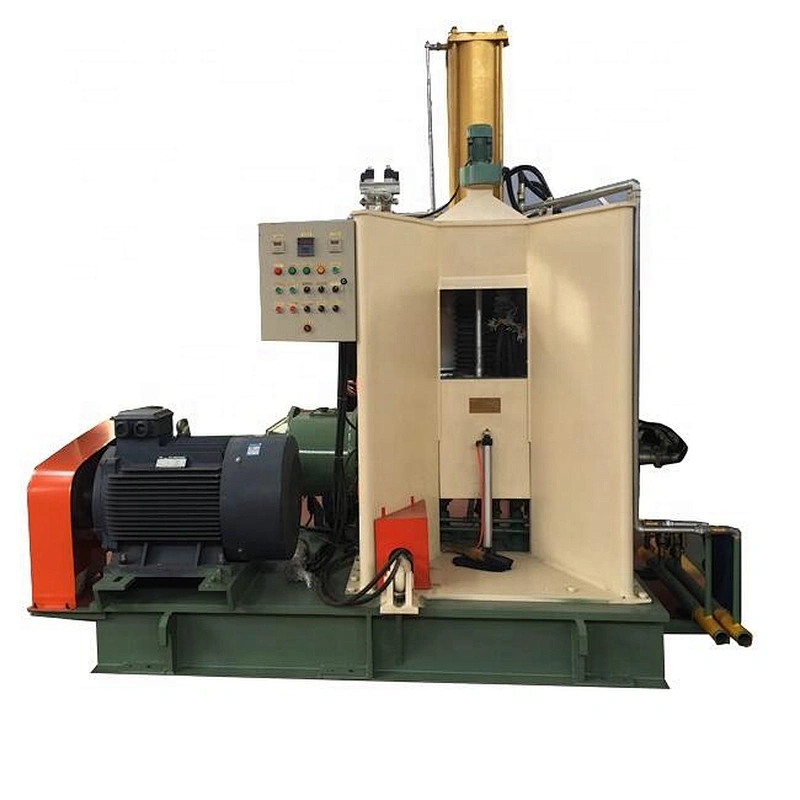

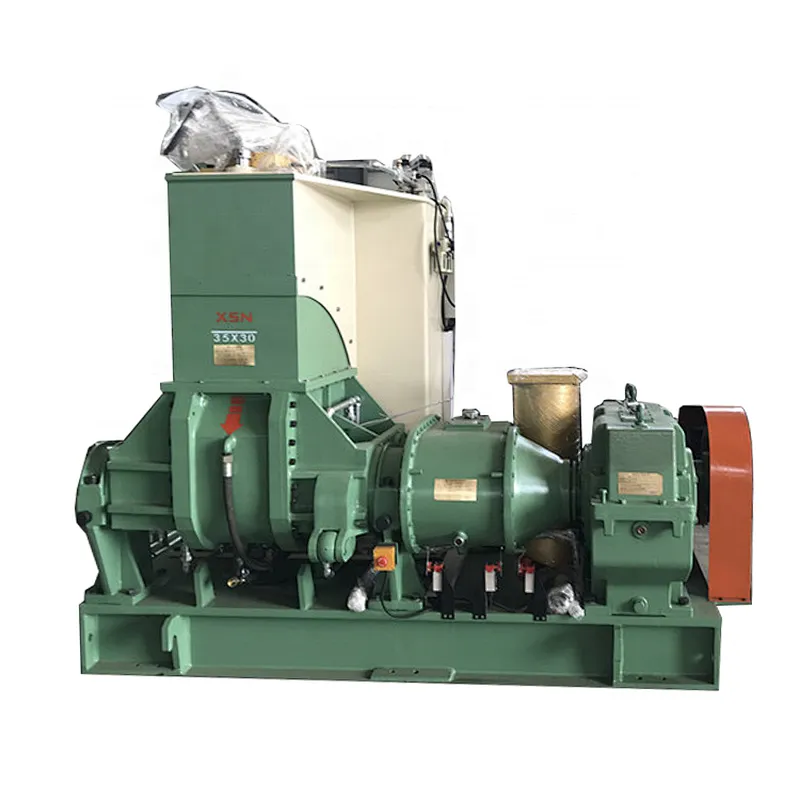

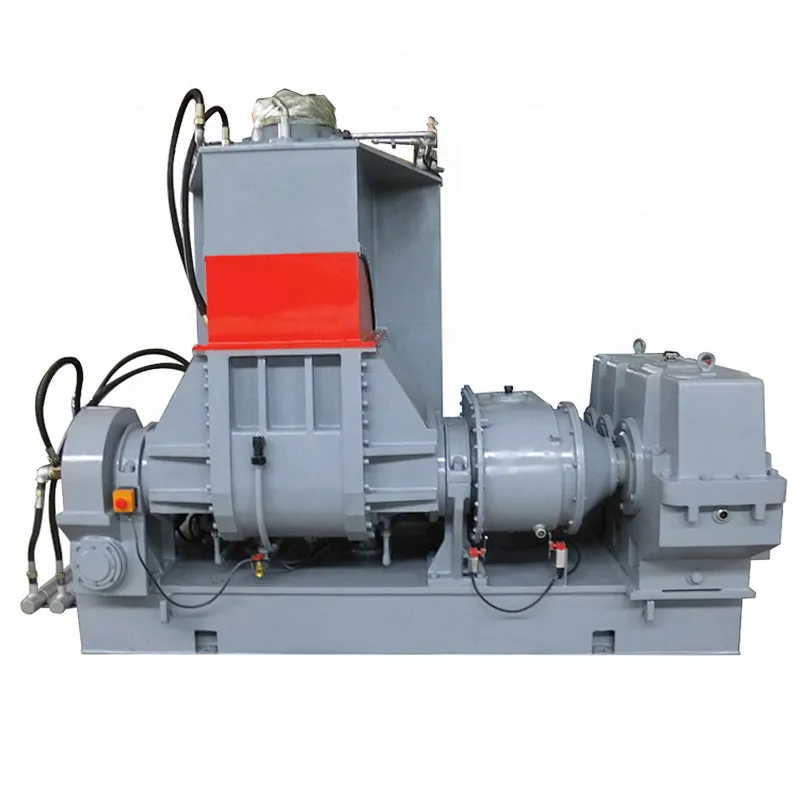

- Type:Rubber Kneader
- Condition:New
- Warranty:1 Year
- After-sales Service Provided:Field maintenance and repair service
- Key Selling Points:Automatic
- After Warranty Service:Video technical support
- After Warranty Service:Online support
- After Warranty Service:Spare parts
- After Warranty Service:Field maintenance and repair service
- Applicable Industries:Manufacturing Plant
- Local Service Location:India
- Showroom Location:India
- Voltage:380V 220V
- Power (kW):75 kW
- Brand Name:HUICAI
- Place of Origin:CN;SHN
- Dimension(L*W*H):3360X1950X3050
- Weight (KG):7500 KG
- Certification:CE,ISO9001
Customize OEM/ODM SERVICE
WELCOME TO OUR FACTORY VIST AND NEGOTIATION
This machine is widely used in rubber products industry: Tire Factory, Cable Factory, tape hose plant, Rubber shoes plant, Seal Factory, rubber and plastic products factory, also used in paints, dyes, ceramics, pharmaceuticals, tape, film mixing of film and other plant production.
| Total volume of mixing chamber | 125L |
| Working volume of mixing chamber | 55L |
| Driving motor power | 75KW |
| Tilting motor power | 2.2KW |
| Tilting angle | 140° |
| Rotational speed of the rotor (front/rear) | 30/24.5 r/min |
| Pressure of compressed air | 0.6-08MPa |
| Capacity of compressed air | above 1.0m³/min |
| Pressure of cooling water | 0.3-0.4MPa |
| Pressure of heating steam (plastic mixing) | 0.5-0.8Mpa |
| Overall dimension | 3360X1950X3050MM |
| Weight | 7500KGS |
We are professional manufacturer of machinery

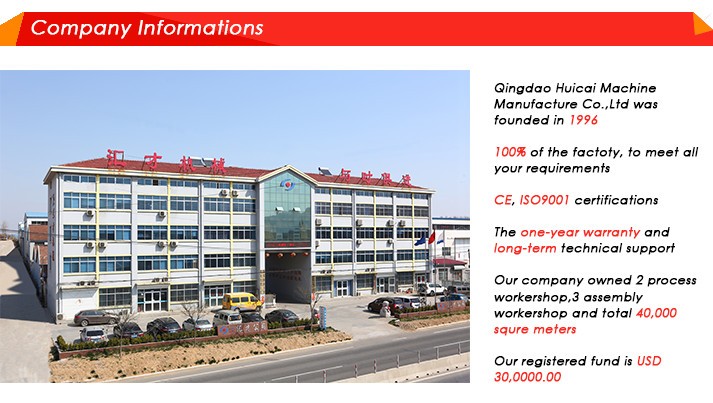

About us--
QingdaoHUICAI Machine Manufacture Co., LTD.
1. has specialized in machine manufacture almost 20 years;(since 1996)
2.100% real manufacture meet all your requests;
3.CE,ISO Certification;
4.provide one year quality guarantee and long-term technical support;
5.provide all kinds of rubber machine:
Vulcanizing machine,Rubber mixing mill,Rubber crushing mill,Rubber refining mill,Rubber plastices kneading machine,Rubber injection&pressure molding machine,Vaccuum heat presses to model the machine, Hydraulic press, Rubber sheeting mill,Jaw type falt vulcanizer,Prevulcanization equipment,Hydraulic tyre vulcanizer,Automatism inner tube press vulcanizer, Foaming press; Conveyor belt production line, Sidewall belt production line, Conveyor belt forming line; Batch-off cooler (cooling line); Rubber cutteretc;
6.our machine are welcome by the world,popular in lots of markets
About Us:
We are a successful manufacturer and foreign trade company that has a good reputation of providing our customers with the best service and online buying experience in the business. Please feel free to email us or call us . Your email
will be appreciate and we reply you as soon as possible.
Notice:
we can accept FOB,CIF,CFR,EXW,etc.
Payment Item:30%TT in advance,70% balance before shipment.
Delivery Time:usually 20-30 days after recieving the deposit,customize model depends on detailed parameter
Packing:bare packing, some parts are packed in wooden case.
If you are interested,please inquiry .
