Steel Wire Cord Rubber Conveyor Belt Making Machine with CE ISO9001 New Price

Steel Wire Cord Rubber Conveyor Belt Making Machine with CE ISO9001 New Price

Model NO.: Steel Wire Cord Rubber Conveyor Belt Making Machine with CE ISO9001 New Price
Minimum order quantity: 1 set
Supply Ability: 100.0 set / Month
Country of Origin: Qingdao

Quantity:

Product Description

After-sales Service Provided:Engineers available to service machinery overseas
Type:Conveyor belt production line
Width:600-2800mm
Service:OEM ODM buyer label
Used for:Making conveyor belt
Belt cord:Steel wire or Textile
Controll:PLC
About HuicaI:Almost 20 years experience
Business model:Manufactures
Weight:2000kg
Power(W):2.2KW
Applicable Industries:Manufacturing Plant
Condition:New
Type:Vulcanizer
Warranty:1 Year
After-sales Service Provided:Field maintenance and repair service
Key Selling Points:Automatic
Brand Name:HUICAI
Voltage:380V
Dimension(L*W*H):1000x800x1200
Certification:CE,ISO9001
Place of Origin:CN;SHN

Customize OEM/ODM SERVICE

WELCOME TO OUR FACTORY VISIT AND NEGOTIATION

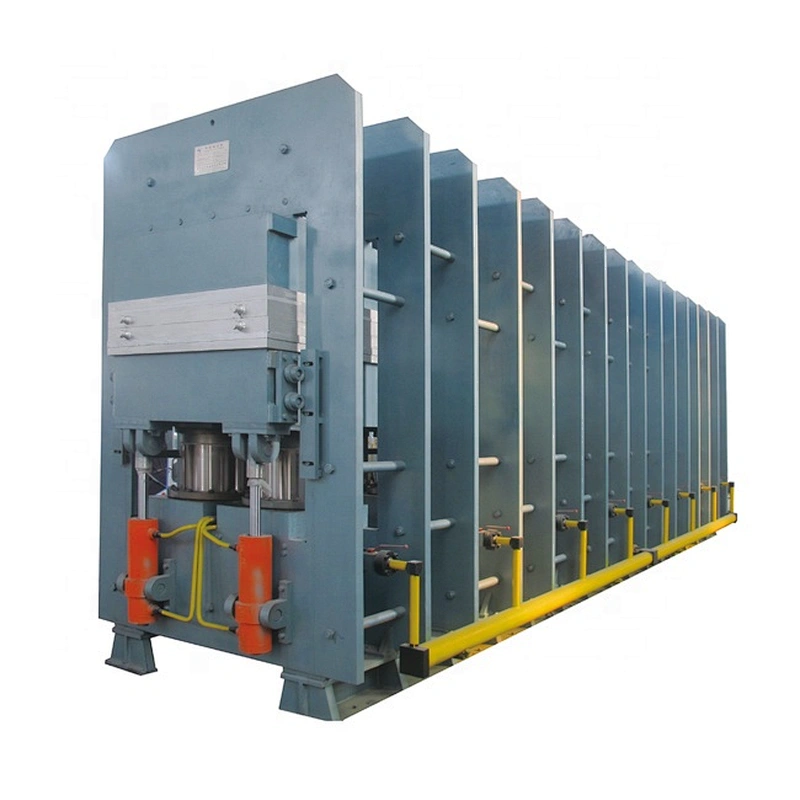

Vulcanizing unit adapted to ordinary rubber vulcanized conveyor belt nylon belt / PVG conveyor belt and other wire rope core parallel fabric tape. Host-frame structure, hot plate and the plunger are made of high-quality material processing precision is not easy wear and easy maintenance is not easy work stress corrosion stable easy to adjust. With PLC control, curing process can be multi process control, can automatically detect and adjust the hot plate temperature, increase the level of control of plate curing unit, reducing labor intensity and improve production efficiency.

parametersversion		XLB-140057002	XLB-1400100001	XLB-1600100002	XLB-180080002	XLB-1800120002	XLB-2000100001
		1400*5700	1400*10000	1600*10000	1800*8000	1800*12000	2000*10000
platen size(L*M) (MM)
		25	49	56	51	74	70
Total pressure (MN)
		3.13	3.5	3.5	3.54	3.4	3.5
pressure unit of plate(mpa)
		360	450	450	600	500	600
Ram diameter(MM)
		10	20	18	12	18	16
Quantity of ram (MM)
		400	300	400	600	400	300
Max.ran stroke (MM)
		0.72	0.9	1.2	1.2	1.2	1.2
Clamping force (MM)
		0.6	0.8	1.1	1	1.1	1
Tensioning force (MN)
		0.63	0.63	0.63	0.63	0.63	0.63
Steam pressure (Mpa)
		0.3	0.3	0.3	0.3	0.3	0.3
Pressure of cooling wate (Mpa)
		Conveyor belt	Conveyor belt	Conveyor belt	Conveyorbelt	Conveyor belt	Conveyor belt
Application
		PLC	PLC	PLC	PLC	PLC	PLC
Conrol form
	Length	5700	10000	1000	2700	2000	10000
Oerall dimensions	Width	2350	2400	2660	8000	12900	3100
Of main (MM)	Height	4170	3580	4120	4500	3930	4400

We are professional manufacturer of machinery

About us--

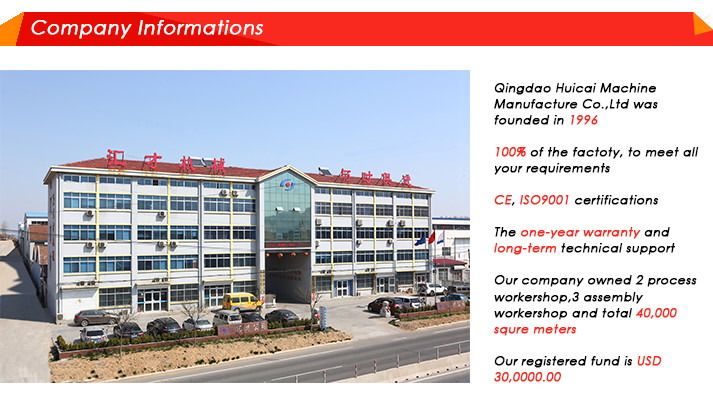

QingdaoHUICAI Machine Manufacture Co., LTD.

1. has specialized in machine manufacture almost 20 years;(since 1996)

2.100% real manufacture meet all your requests;

3.CE,ISO Certification;

4.provide one year quality guarantee and long-term technical support;

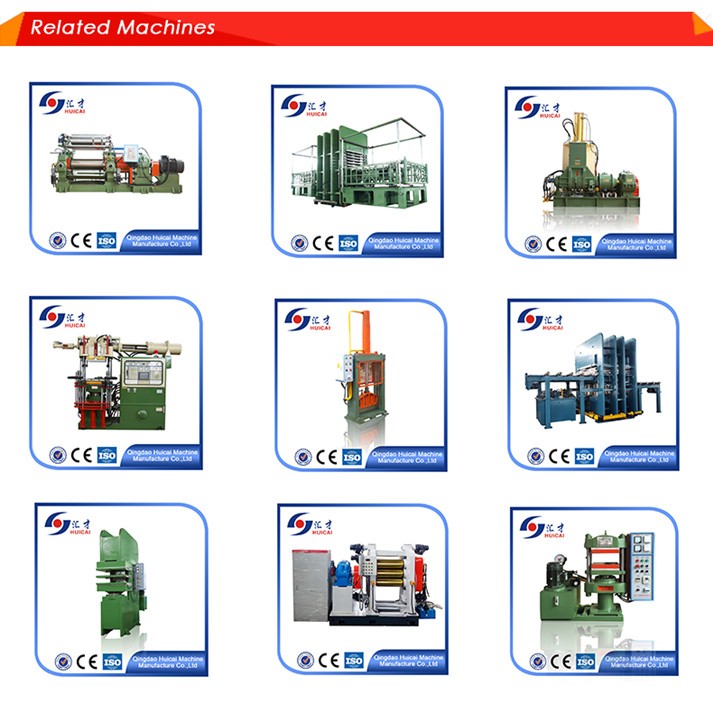

5.provide all kinds of rubber machine:

Vulcanizing machine,Rubber mixing mill,Rubber crushing mill,Rubber refining mill,Rubber plastices kneading machine,Rubber injection&pressure molding machine,Vaccuum heat presses to model the machine, Hydraulic press, Rubber sheeting mill,Jaw type falt vulcanizer,Prevulcanization equipment,Hydraulic tyre vulcanizer,Automatism inner tube press vulcanizer, Foaming press; Conveyor belt production line, Sidewall belt production line, Conveyor belt forming line; Batch-off cooler (cooling line); Rubber cutteretc;

6.our machine are welcome by the world,popular in lots of markets

About Us:

We are a successful manufacturer and foreign trade company that has a good reputation of providing our customers with the best service and online buying experience in the business. Please feel free to email us or call us . Your email

will be appreciate and we reply you as soon as possible.

Notice:

we can accept FOB,CIF,CFR,EXW,etc.

Payment Item:30%TT in advance,70% balance before shipment.

Delivery Time:usually 20-30 days after recieving the deposit,customize model depends on detailed parameter

Packing:bare packing, some parts are packed in wooden case.

If you are interested,please inquiry.
