- Place of Origin:CN;SHN
- Type:Rubber Cutting Machine
- Condition:New
- Tire Machine Type:Other Tire Machine
- Key Selling Points:Multifunctional
- After Warranty Service:Field maintenance and repair service
- Applicable Industries:Building Material Shops
- Applicable Industries:Manufacturing Plant
- Applicable Industries:Machinery Repair Shops
- Applicable Industries:Construction works
- Applicable Industries:Energy & Mining
- Local Service Location:India
- Local Service Location:Sri Lanka
- Showroom Location:India
- Showroom Location:Sri Lanka
- Brand Name:HuiCai
- Voltage:Customer Request
- Dimension(L*W*H):Size
- Certification:CE ISO
- Year:new
- Warranty:1 Year
- Power (kW):5.5 kW
- Weight (KG):1600 KG
- After-sales Service Provided:Engineers available to service machinery overseas
- color:green
- waranty:one year life
- certification:ISO 9001

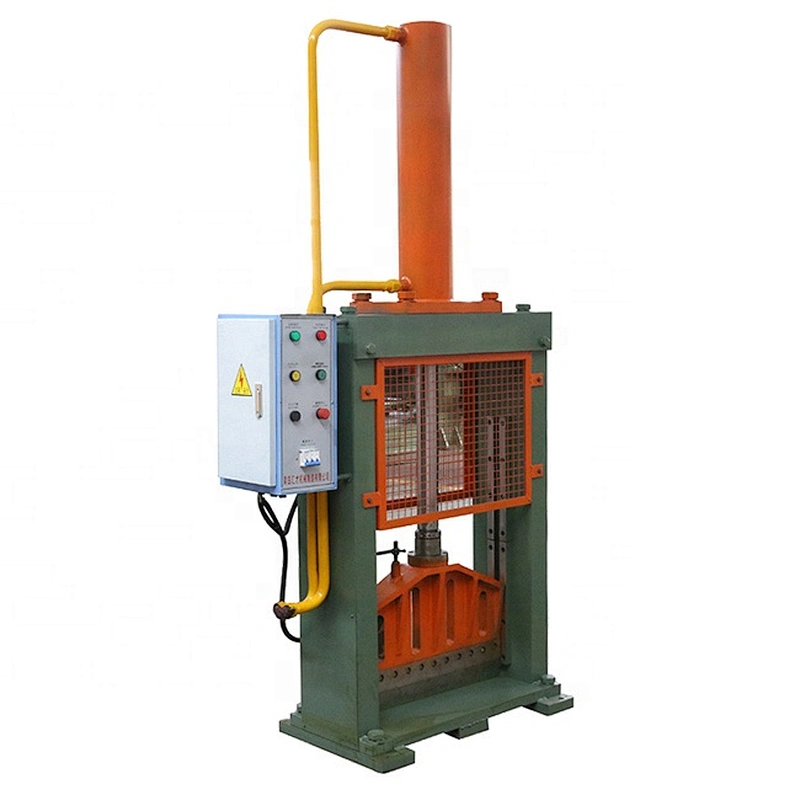

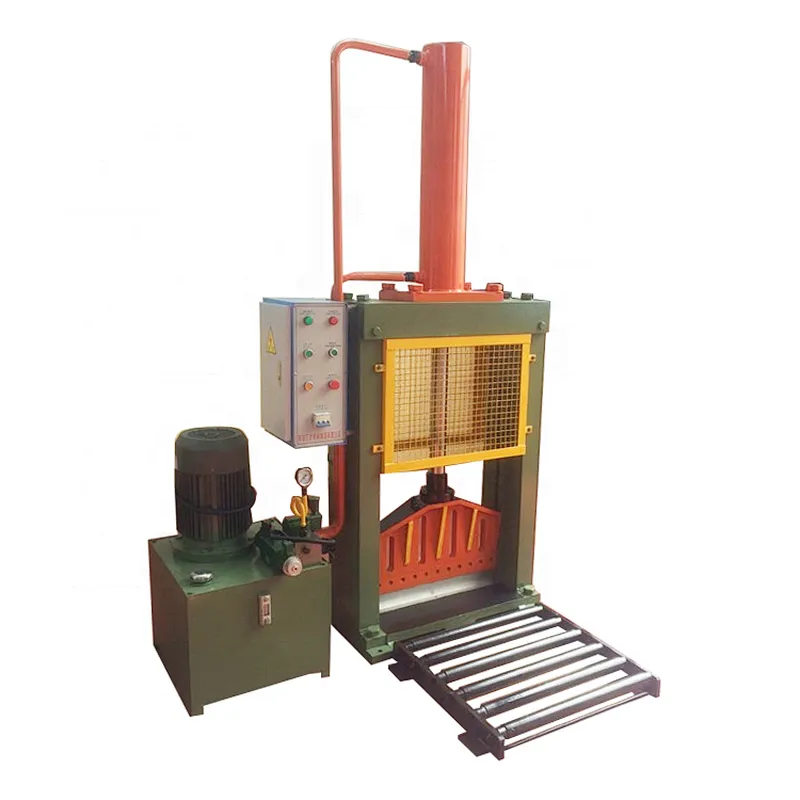

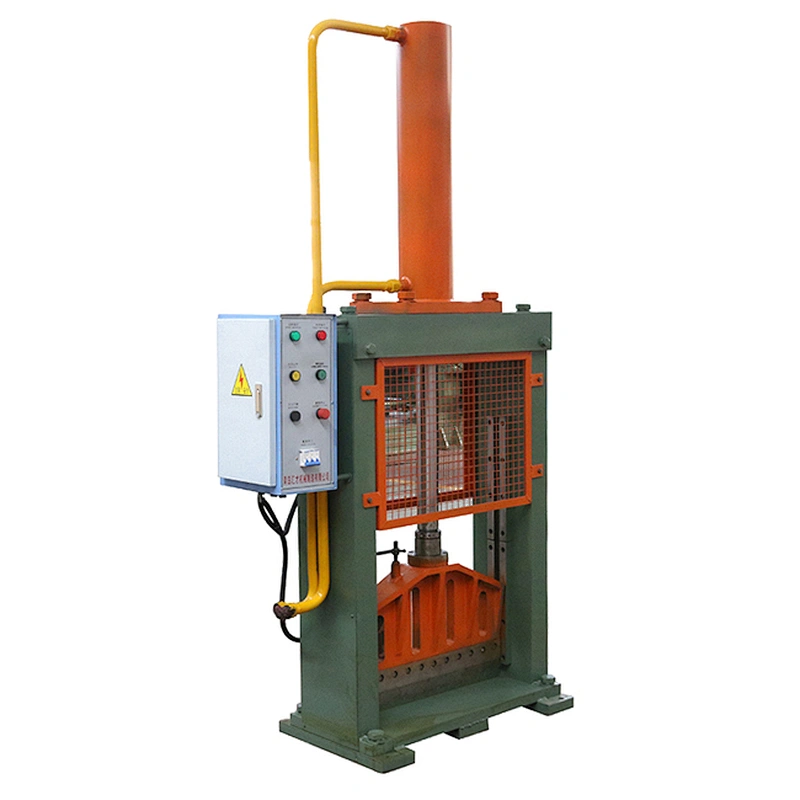

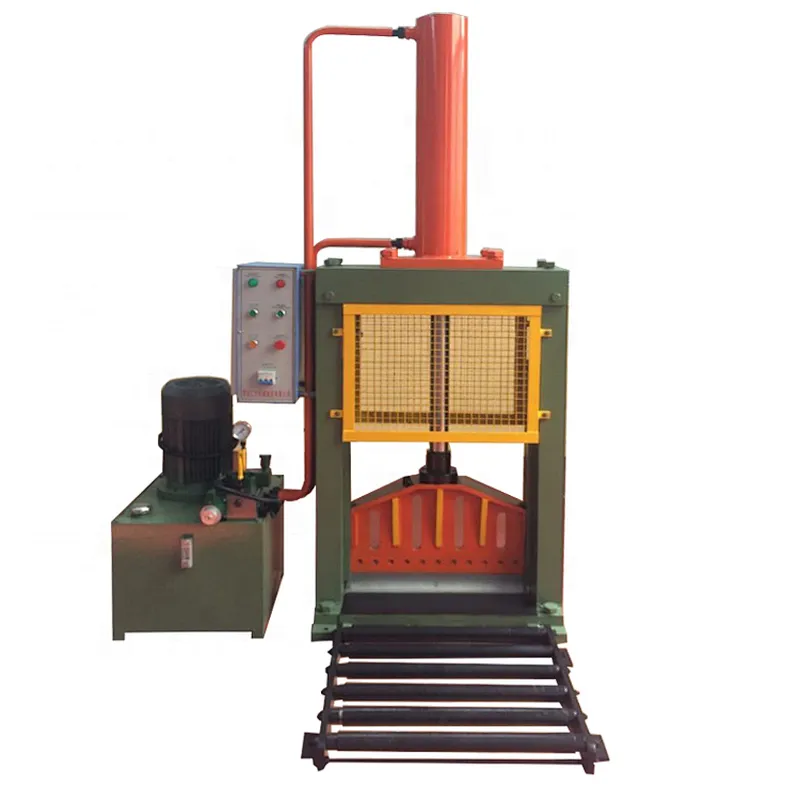

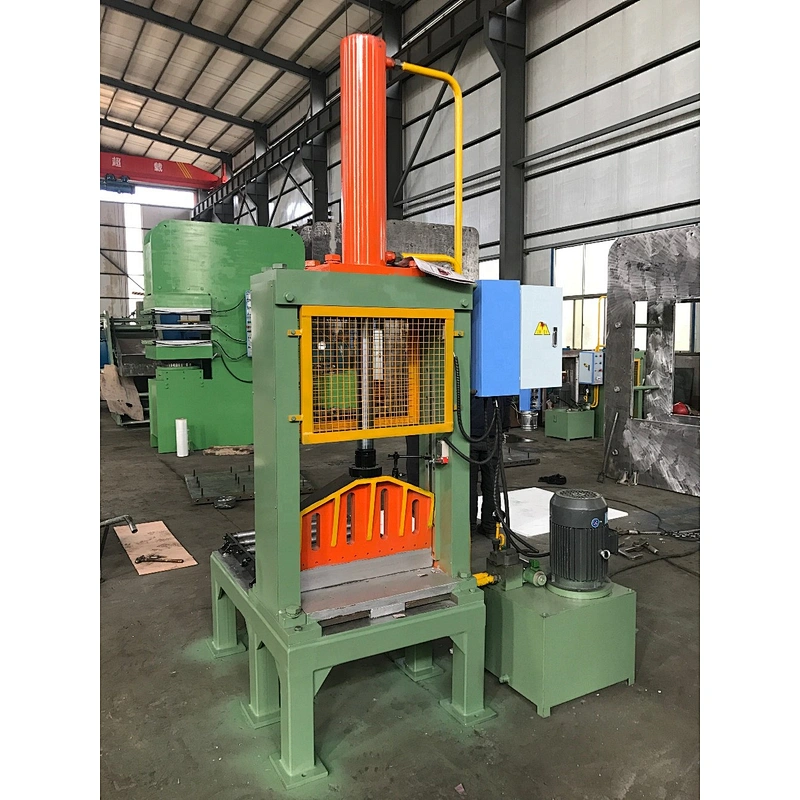

This machine is mainly used for the natural rubber, synthetic rubber and cut into pieces for the refining of small plastic
Type | XQL-80 | XQL-120 | XQL-125 |
Width of Knife for Cutting Plastic(mm) | 660 | 760 | 760 |
Knife Stroke(mm) | 680 | 680 | 680 |
Cylinder Total Pressure(KN)Approximately | 80 | 120 | 125 |
Stroke Time(S | 14-16 | 13-16 | 13-16 |
Motor Power(kw) | 5.5 | 11 | 14 |
Overall Size(LxWxH)mm | 2122x1440x2509 | 1950x1400x2338 | 2300x1500x2530 |
Product Weight kg | 1600 | 2000 | 2600 |
We can also design and produce according to customer’s requirement. If you are interested in our products or have any questions, please contact us freely. We will try our best to meet your requirement in the first time
Notice:According to the different models have different price, please send your need to type and quantity of the product

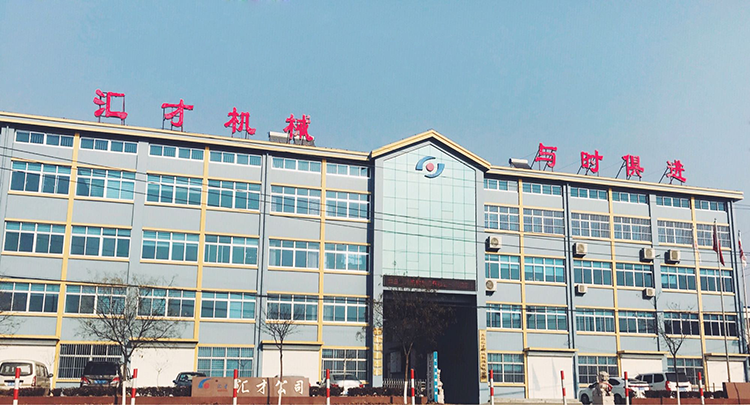

(1) Qingdao HUICAI Machinery Manufacturing Co., Ltd. was founded in1996;
(2)100% of the factory, to meet all your requirements;

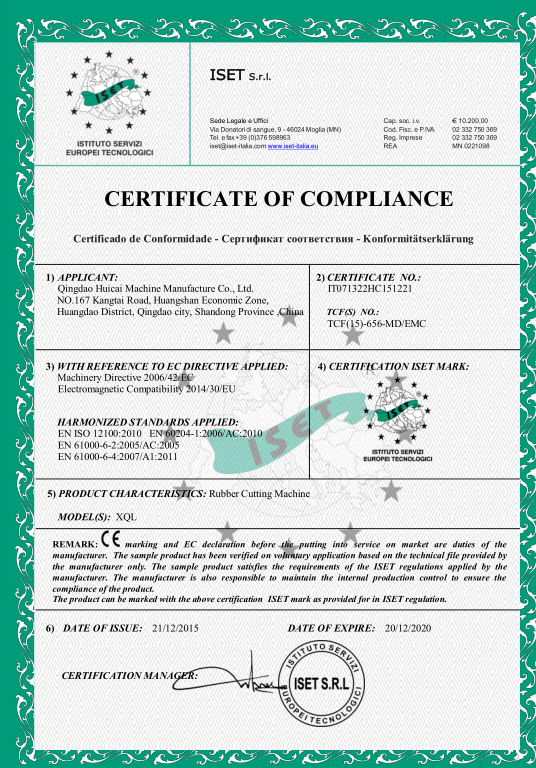

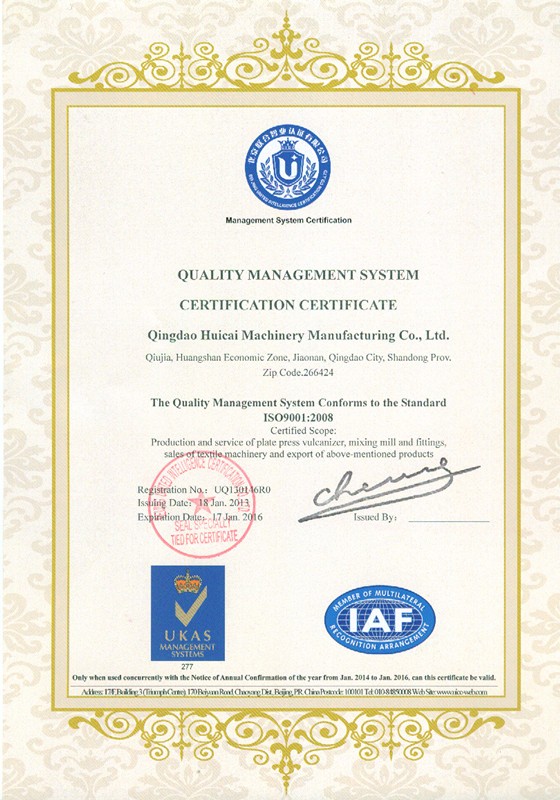

(3)CE,ISO9001certification;
(4) a one-year warrantyandlong-term technical support;
(5) Supply of all kinds of rubber machinery: vulcanizing machine, rubber mixer, broken plastic machine, rubber refiner, rubber kneading machine, rubber injection molding machines, vacuum hot press molding machine, hydraulic machine, rubber tableting machine, jaw vulcanizing machine malfunction, pre-curing equipment, hydraulic tire curing machine, automatic tube curing machine, foam machine; conveyor belt production line, sidewall belt production line, molding line conveyor; batch closed cooler (cold); cut plastic machine;
(6) The company has import and export rights, the products are exported to countries and regions in the United States, South Korea, Japan, Thailand, Germany;
(7) 2012 was awarded the"AAA grade credit enterprise"and"integrity enterprises in Qingdao City,"the title.
We are looking forward to cooperating with you!
