- Place of Origin:CN;SHN
- Type:Vulcanizer
- Condition:New
- Key Selling Points:High-accuracy
- After Warranty Service:Video technical support
- After Warranty Service:Online support
- After Warranty Service:Spare parts
- After Warranty Service:Field maintenance and repair service
- Applicable Industries:Manufacturing Plant
- Local Service Location:Sri Lanka
- Showroom Location:Turkey
- Showroom Location:United States
- Showroom Location:Germany
- Showroom Location:Viet Nam
- Showroom Location:Brazil
- Showroom Location:Indonesia
- Showroom Location:Thailand
- Showroom Location:Morocco
- Showroom Location:Chile
- Showroom Location:Colombia
- Showroom Location:Sri Lanka
- Showroom Location:Bangladesh
- Showroom Location:Ukraine
- Showroom Location:Malaysia
- Brand Name:huicai
- Voltage:380V
- Dimension(L*W*H):/
- Certification:CE/ISO9001
- Year:2020
- Warranty:ONE YEAR
- Power (kW):3 kW
- Weight (KG):3600 KG
- After-sales Service Provided:Engineers available to service machinery overseas
- Color:Optional
- Nominal molding power:150Ton
- Hot Plate size:1100*1100mm
- Piston stroke:500mm
- Plate clearance:250mm
- Working layer number:2
- Heating Method:Electrical
- Structure:Frame Type
- Device:With Front and Back manual push-pull mode
Welcome To Our Company!

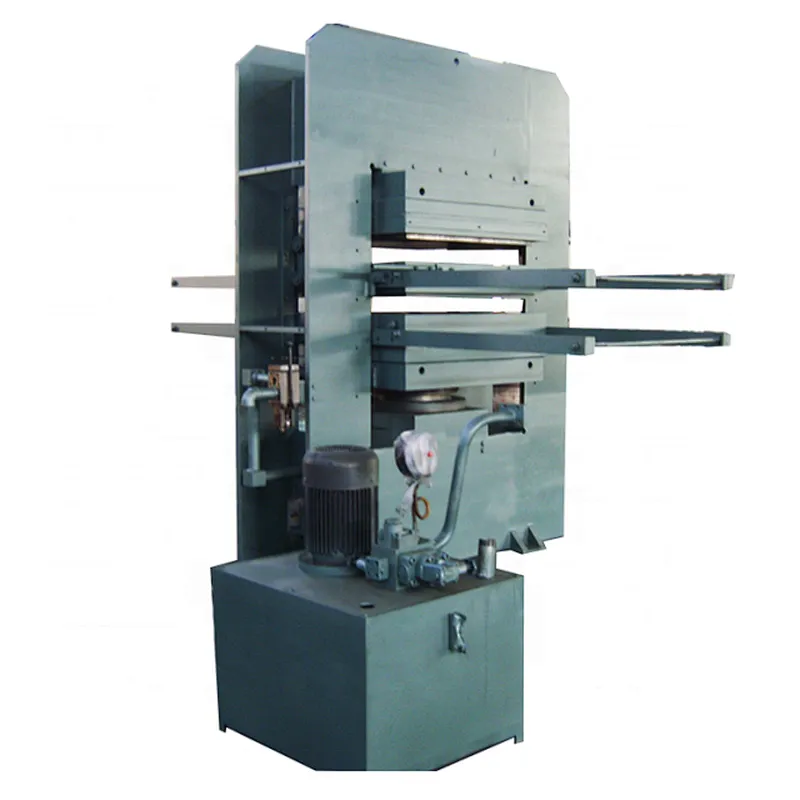

High quality factory price rubber floor tile vulcanizing press
Features:
It is used for vulcanizing all kinds of rubber tiles, floor, mat, etc.
High speed open/close molds, high production efficiency, low locking speed, protect mold.
It has column structure and downward pressing type, the heating plate opens by the self-weight of the heating plate, platform and plunger.
Technical Parameters:
Type | XLB-D(Y)600*800*1/2 | XLB-D(Y)800*800*1/2 | XLB-D(Y)1000*1000*1/2 |
Nominal molding power(MN) | 1.20 | 1.00/1.60 | 1.00/1.60 |
Working layer number | 2 | 1-2 | 1-2 |
Piston stroke(mm) | 250-500 | 250-500 | 250-500 |
Main motor power(KW) | 2.2 | 2.2 | 2.2 |
Plate clearance(mm) | 250 | 125-500 | 125-500 |
Calefaction manner | Steam ecectricity | Steam ecectricity | Steam ecectricity |
Configuration | Frame | Frame | Frame |
Electric pipe heating power | 4.2 | 4.8 | 8.0 |
We can also design and produce according to customer’s requirement. If you are interested in our products or have any questions, please contact us freely. We will try our best to meet your requirement in the first time.

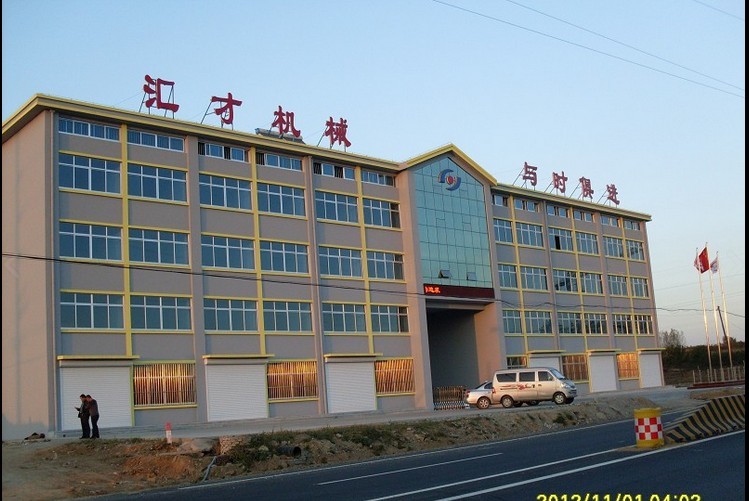

(1) Qingdao HUICAI Machinery Manufacturing Co., Ltd. was founded in 1996;
(2) 100% of the factory, to meet all your requirements;
(3) CE, ISO9001 certification;
(4) a one-year warranty and long-term technical support;
(5) supply of all kinds of rubber machinery: vulcanizing machine, rubber mixer, broken plastic machine, rubber refiner, rubber kneading machine, rubber injection molding machines, vacuum hot press molding machine, hydraulic machine, rubber tableting machine, jaw vulcanizing machine malfunction, pre-curing equipment, hydraulic tire curing machine, automatic tube curing machine, foam machine; conveyor belt production line, sidewall belt production line, molding line conveyor; batch closed cooler (cold); cut plastic machine;
(6) The company has import and export rights, the products are exported to countries and regions in the United States, South Korea, Japan, Thailand, Germany;
(7) 2012 was awarded the"AAA grade credit enterprise"and"integrity enterprises in Qingdao City,"the title.
