- Place of Origin:CN;SHN
- Condition:New
- Machine Type:Plate Vulcanizing Press
- Warranty:1 Year
- After-sales Service Provided:Free spare parts
- After-sales Service Provided:Field installation, commissioning and training
- After-sales Service Provided:Online support
- After-sales Service Provided:Video technical support
- Key Selling Points:Long Service Life
- After Warranty Service:Video technical support
- After Warranty Service:Online support
- After Warranty Service:Spare parts
- After Warranty Service:Field maintenance and repair service
- Local Service Location:India
- Local Service Location:Sri Lanka
- Showroom Location:United States
- Showroom Location:Germany
- Showroom Location:Philippines
- Showroom Location:Brazil
- Showroom Location:Peru
- Showroom Location:Indonesia
- Showroom Location:Pakistan
- Showroom Location:India
- Showroom Location:Mexico
- Showroom Location:South Korea
- Showroom Location:Bangladesh
- Applicable Industries:Manufacturing Plant
- Brand Name:HUICAI
- Voltage:380V/220V
- Dimension(L*W*H):1500*1500*1
- Weight:400T
- Certification:CE/ISO9001
- After-sales Service Provided:Engineers available to service machinery overseas
- Type:XLB-D(Y)1500*1500*1
- Nominal molding power(MN):4.00-5.00
- Working layer number:1
- Piston stroke(mm):250-500
- Main motor power(KW):3.0
- Plate clearance(mm):125-500
- Calefaction manner:Steam ecectricity
- Condition:New
- Power(W):18500
Product Description
Features
1.Compactstructure,beautiful modellingandstrong clamp force.
2. Per working position can be heated to 180 degree celsius(adjustable),the lower template can control temperature in room temperature condition to form an effective temperature difference.
3. Its unique double temperature station structure and high pressure characteristics are used in all kinds of reflective materials products such as trademark , etc
4. PassCEandISO9001Standard.
Technical Parameter | ||||||
Type | XLB-D(Y)1000*1000*1 | XLB-D(Y)1200*1200*1 | XLB-D(Y)1500*1500*1 | |||
Nominal molding power | 1.60-2.00MN | 3.15MN | 4.00-5.00MN | |||
Working layer number | 1 | 1 | 1 | |||
Piston stroke | 250-500mm | 250-500mm | 250-500mm | |||
Main motor power | 3.0kW | 3.0kW | 3.0kW | |||
Plate clearance | 125-500mm | 125-500mm | 125-500mm | |||
Heating method | Steam,ecectricity | Steam,ecectricity | Steam,ecectricity | |||
Configuration | Frame | Frame | Frame | |||
Electric pipr heating power | 12kW | 15.6kW | 27kW | |||

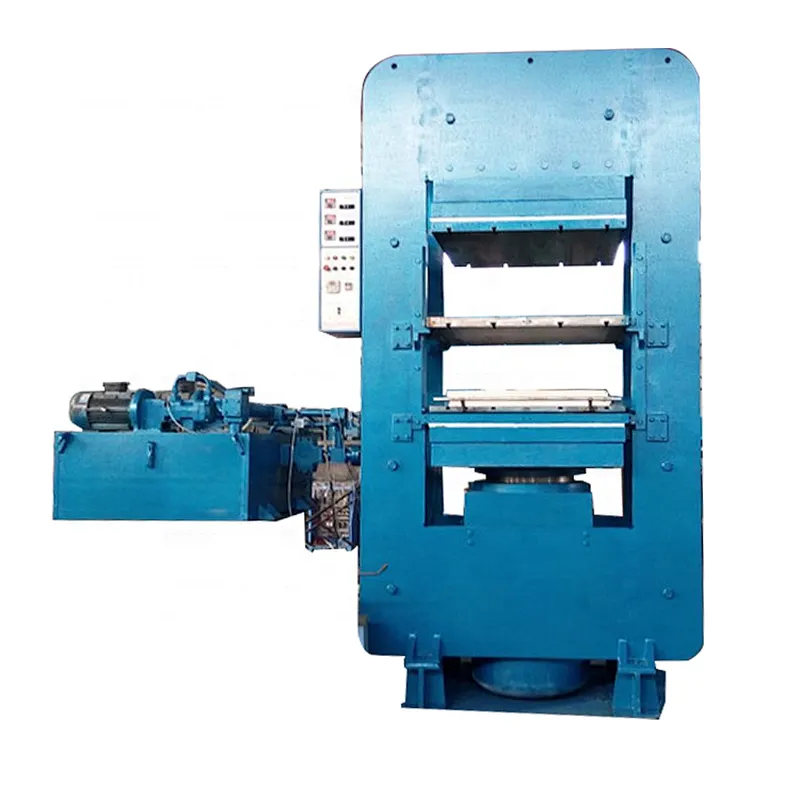

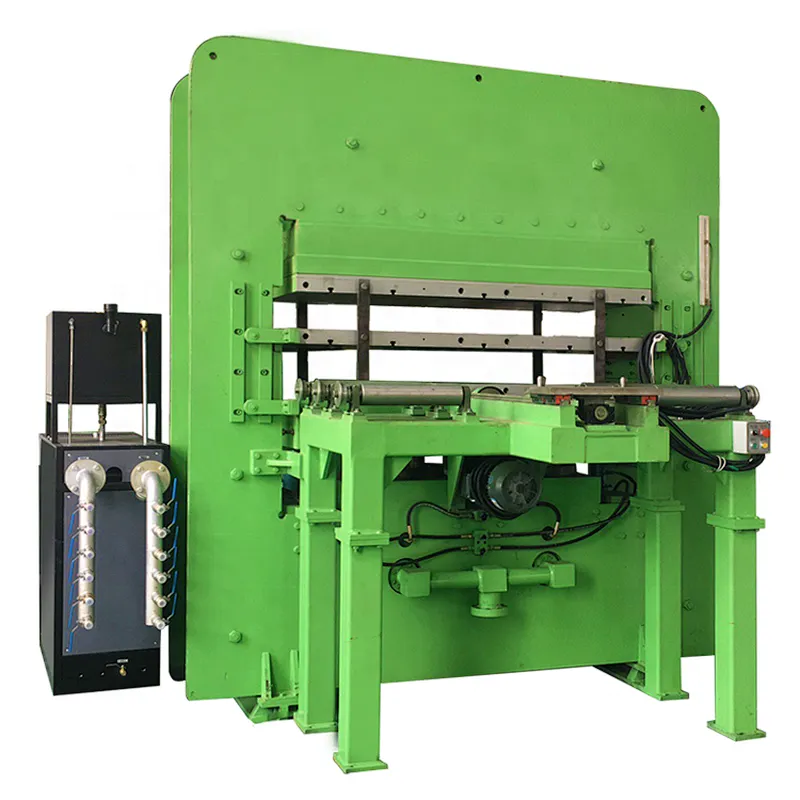

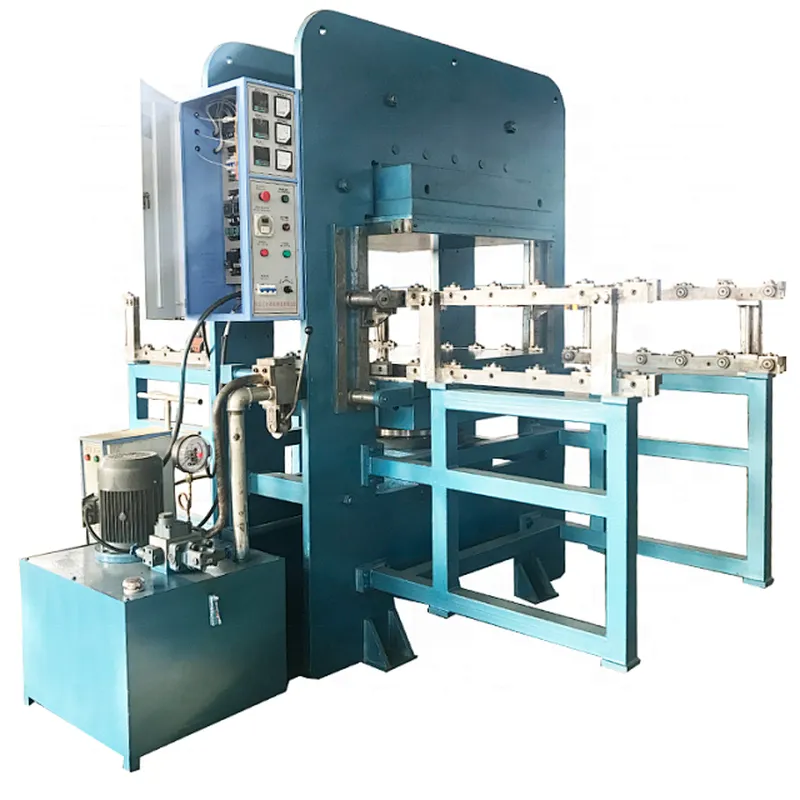

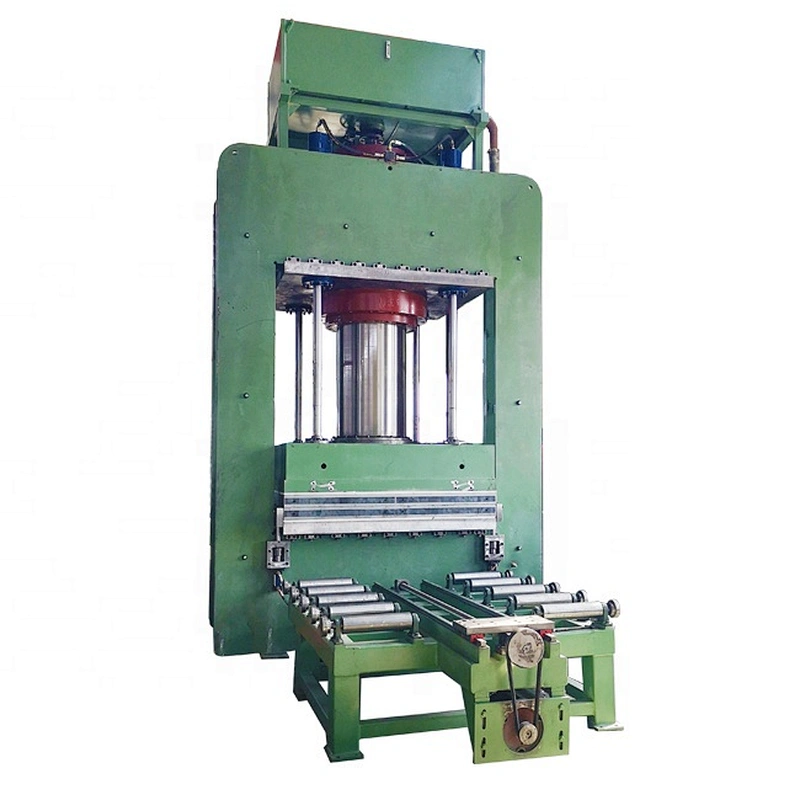

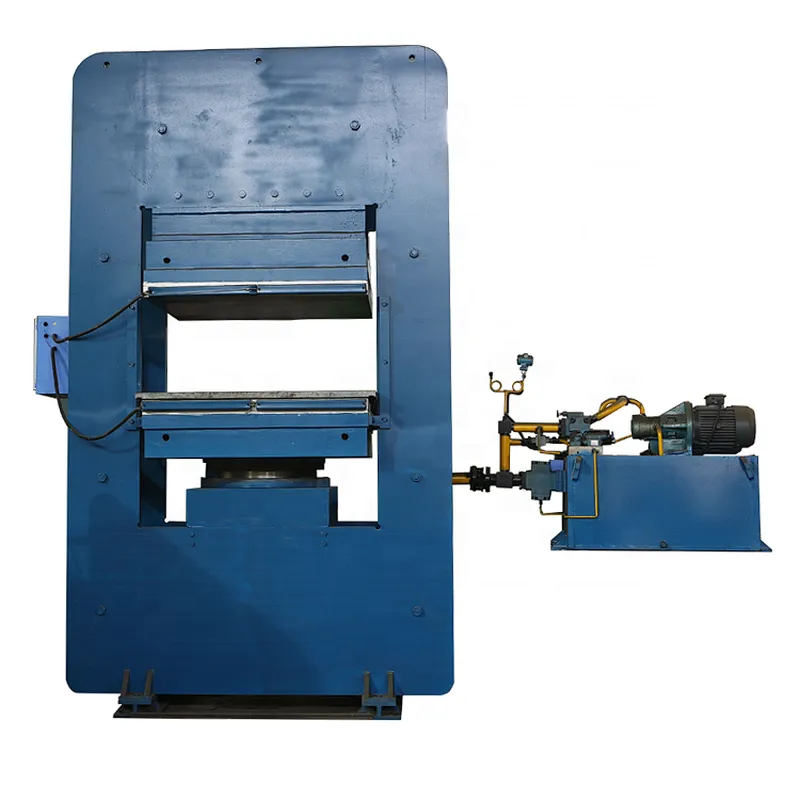

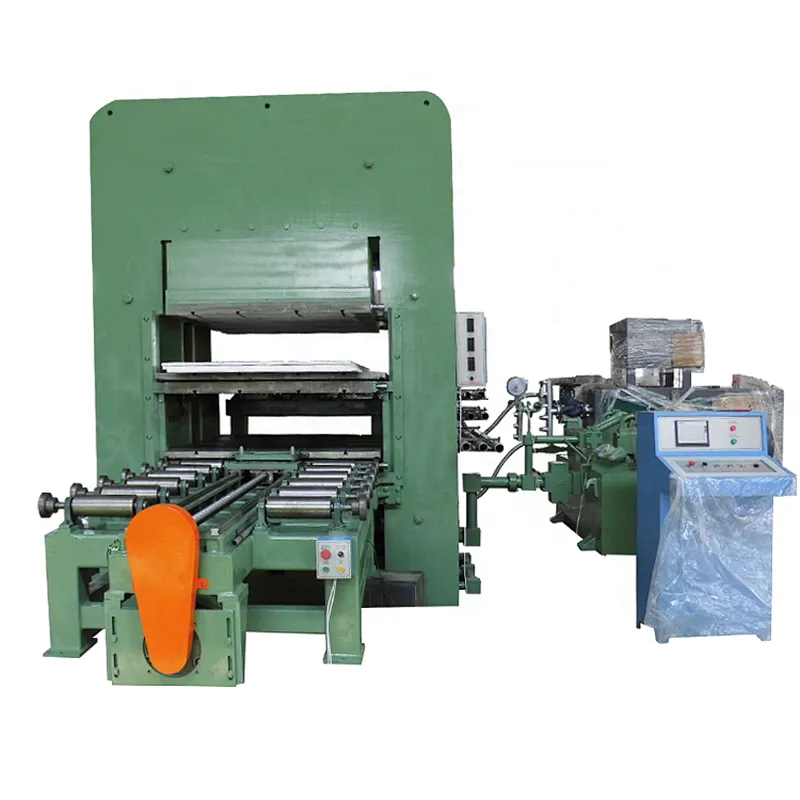

Machine Show
Road Speed Bumps Machine Rubber Products Making Machine
(1)Qingdao HUICAI Machinery Manufacturing Co., Ltd. was founded in1996;
(2)100% of the factory, to meet all your requirements;
(3)CE,ISO9001certification;
(4) a one-year warrantyandlong-term technical support;
(5)Our company owned 2 process workershop,2 assembly workershop and total 40,000 squre meters.
(6)Our registered fund is USD 30,0000.00.
