automotive rubber track system for small vehicle small atv veSilicone Injection moulding machine

automotive rubber track system for small vehicle small atv veSilicone Injection moulding machine

Model NO.: automotive rubber track system for small vehicle small atv veSilicone Injection moulding machine
Minimum order quantity: 1 set
Supply Ability: 100.0 set / Month
Country of Origin: Qingdao

Quantity:

Product Description

After-sales Service Provided:Engineers available to service machinery overseas
Mold-locking force (KN):2000
Inject and press stroke (mm):350
Thermo-plate size (mm):550*600
Max. distance of thermo-plate (mm):350
Motor power (KW):45
Weight:1200kg
Type:Rubber Injection Machine
Condition:New
Video outgoing-inspection:Provided
Machinery Test Report:Provided
Marketing Type:Ordinary Product
Warranty of core components:1 Year
Core Components:PLC
Core Components:Engine
Core Components:Bearing
Core Components:Gearbox
Core Components:Motor
Warranty:1 Year
After-sales Service Provided:Field maintenance and repair service
Key Selling Points:Automatic
After Warranty Service:Video technical support
After Warranty Service:Online support
After Warranty Service:Spare parts
After Warranty Service:Field maintenance and repair service
Applicable Industries:Manufacturing Plant
Local Service Location:India
Showroom Location:India
Place of Origin:CN;SHN
Brand Name:HUICAI
Voltage:380V
Dimension(L*W*H):1000x1200x1800
Certification:CE,ISO9001
Power (kW):45
Weight (KG):1200

Product Description

WELCOME TO OUR FACTORY VISIT AND NEGOTIATION

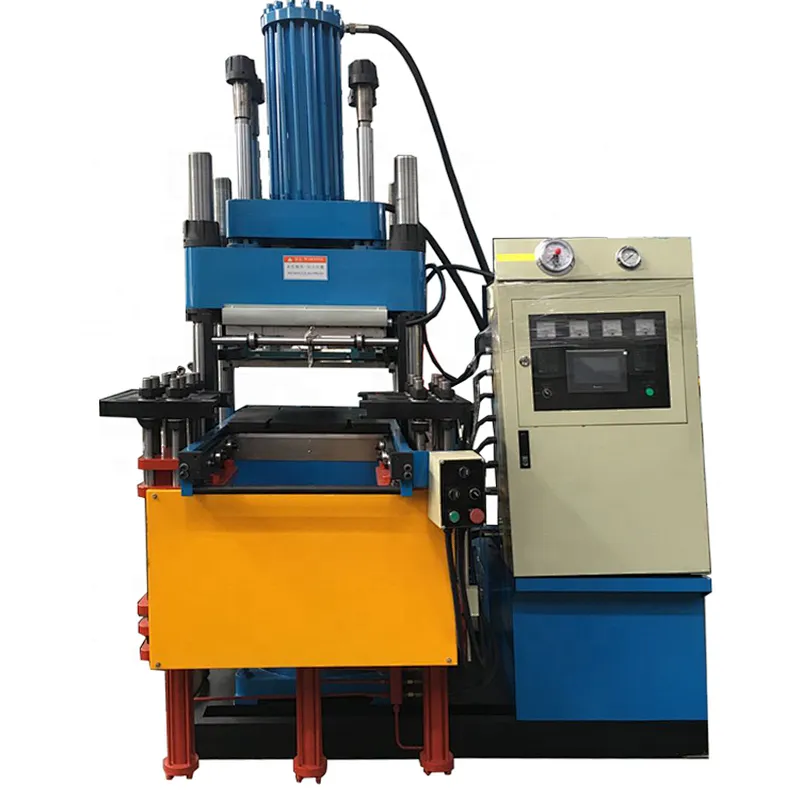

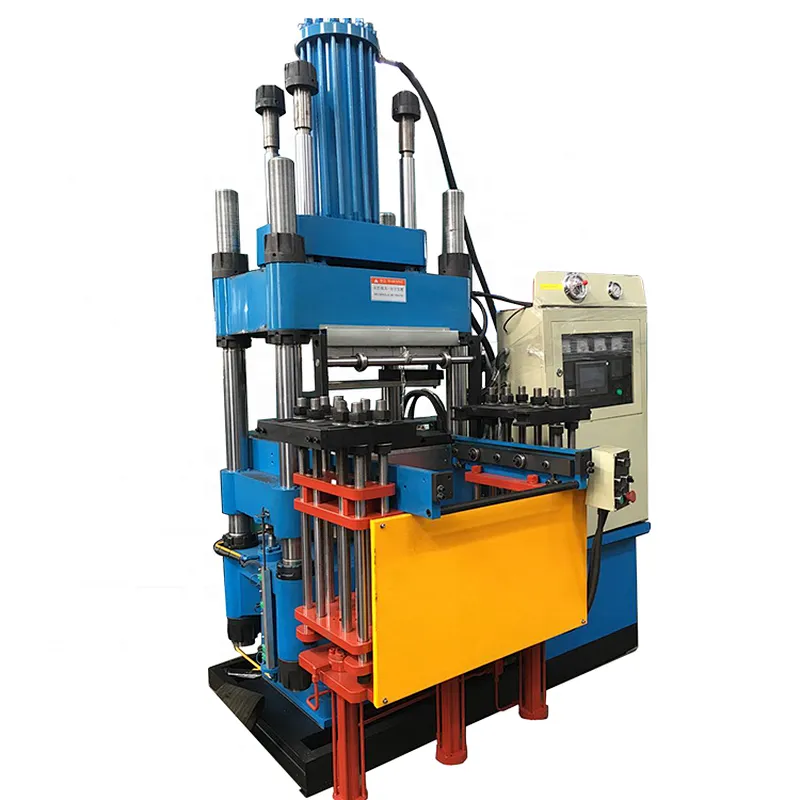

XZB series rubber injection molding machine is mainly used for all kinds of rubber, bakelite, plastic materials, and other products of the injection and pressure molding, it is especially suitable for high quality requirements, complex shape, thick wall and embedded parts products forming.

Polygin, polyhedron, and other complicated products, Especially in sports, medical,
automobile, and electrical applications.
Suitable for
Rubber injection molding machine:
Nature rubber
Rubber of metal boned parts
Oil resistance rubber
NBR+PVC concoction
Synthetic rubber
Medical/pharmaceutical usage rubber
Heat resistance rubber

XZL-series four column rubber injection machine

Huacheng XZL series four column rubbe injecion machine uses Gemany technology of injection machine.It has high effciency,high quality,high precision features.Compared with foreign similar machines,the most advantage of our machine is that it has good performance-price ratio.It sells well not only in domestic market but also at abroad.

XZL series rubber injection machine is used to produce auto spare parts,industral spare parts,electric appliances insulated spare parts,sealing washer,antivibration pad,toy and bodybuilding rubber parts,etc.It has short production time,good quality,stable physicomechanical character and precister and precise dimension.It is especially good for producing rubber products of complicated shape,thick wall or with embedded parts.

Features:

The first plasticized rubber materal goes into the mold cylinder first during injection,which means First In First Out(FIFO).This saves production time.

Provide big work table

Imported double-proportinal trunk pistion oil pump can do any actions without impact

Save 25-50% motor energy cost

Use Germany electronic ruler to measure the injection,ensure the precision

Three sections of injection pressure,flow and pressure holding satisfy any products’ technological requirements

PLC programmable controller and touch screen make it easy to set up ,view and save Technological parameters.It can also supervise the whole producing,auto diagnose inner fault And give an alarm

Protect with safe light curtain

Precisely fix mold in and out position

Control materal temperature

Temperature control precision is between ±1°C

Model	XZB-630	XZB-1000B	XZB-1000A	XZB-1600	XZB-2000	XZB-3500
Mold-locking force (KN)	630	1000	1000	1600	2000	3500
Injection pressure (Mpa)	90	100	110	110	100	115
Material tank size (mm)	Φ70*250	Φ80*220	Φ80*255	Φ80*255	Φ90*300	Φ110*385
Block stroke (mm)	300	300	300	300	300	350
Inject and press stroke (mm)	360	350	380	380	450	585
Thermo-plate size (mm)	440*480	440*480	520*540	520*540	550*600	680*750
Max. distance of thermo-plate (mm)	300-400	270-400	190-480	200-480	180-480	350-600
Motor power (KW)	4	4+2.2	4+2.2	4+2.2	5.5+3	7.5+5.5

Company Information

we also can design in accordance with your demand customization parameters

We are professional manufacturer of machinery

About us--

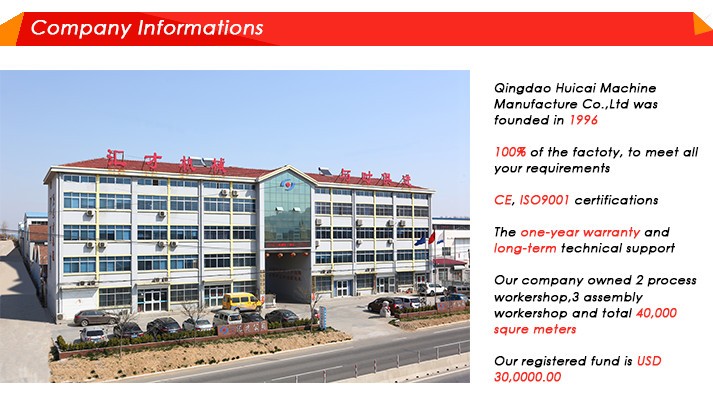

QingdaoHUICAI Machine Manufacture Co., LTD.

1. has specialized in machine manufacture almost 20 years;(since 1996)

2.100% real manufacture meet all your requests;

3.CE,ISO Certification;

4.provide one year quality guarantee and long-term technical support;

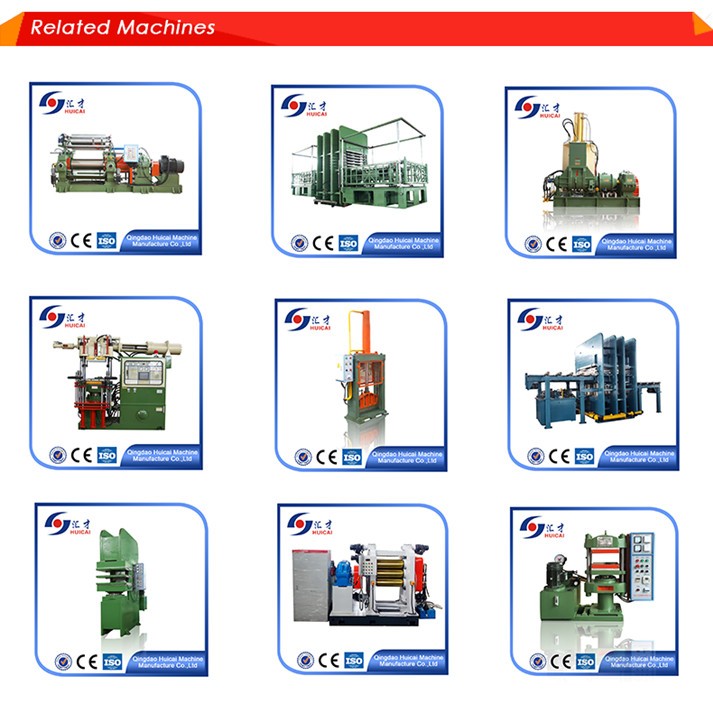

5.provide all kinds of rubber machine:

Vulcanizing machine,Rubber mixing mill,Rubber crushing mill,Rubber refining mill,Rubber plastices kneading machine,Rubber injection&pressure molding machine,Vaccuum heat presses to model the machine, Hydraulic press, Rubber sheeting mill,Jaw type falt vulcanizer,Prevulcanization equipment,Hydraulic tyre vulcanizer,Automatism inner tube press vulcanizer, Foaming press; Conveyor belt production line, Sidewall belt production line, Conveyor belt forming line; Batch-off cooler (cooling line); Rubber cutteretc;

6.our machine are welcome by the world,popular in lots of markets

About Us:

We are a successful manufacturer and foreign trade company that has a good reputation of providing our customers with the best service and online buying experience in the business. Please feel free to email us or call us . Your email

will be appreciate and we reply you as soon as possible.

Notice:

we can accept FOB,CIF,CFR,EXW,etc.

Payment Item:30%TT in advance,70% balance before shipment.

Delivery Time:usually 20-30 days after recieving the deposit,customize model depends on detailed parameter

Packing:bare packing, some parts are packed in wooden case.
