- Place of Origin:CN
- Condition:New
- Machine Type:Rubber Injection Machine
- Warranty:1 Year
- After-sales Service Provided:Free spare parts
- After-sales Service Provided:Field installation, commissioning and training
- After-sales Service Provided:Field maintenance and repair service
- After-sales Service Provided:Online support
- After-sales Service Provided:Video technical support
- Key Selling Points:Easy to Operate
- After Warranty Service:Video technical support
- After Warranty Service:Online support
- After Warranty Service:Spare parts
- After Warranty Service:Field maintenance and repair service
- Local Service Location:Sri Lanka
- Showroom Location:Sri Lanka
- Applicable Industries:Manufacturing Plant
- Brand Name:HuiCai

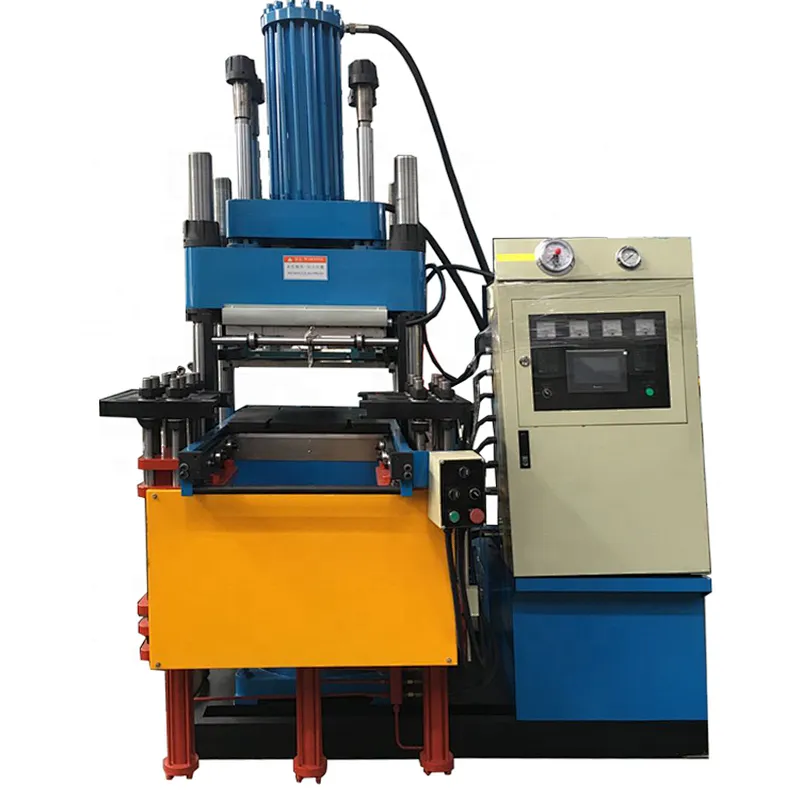

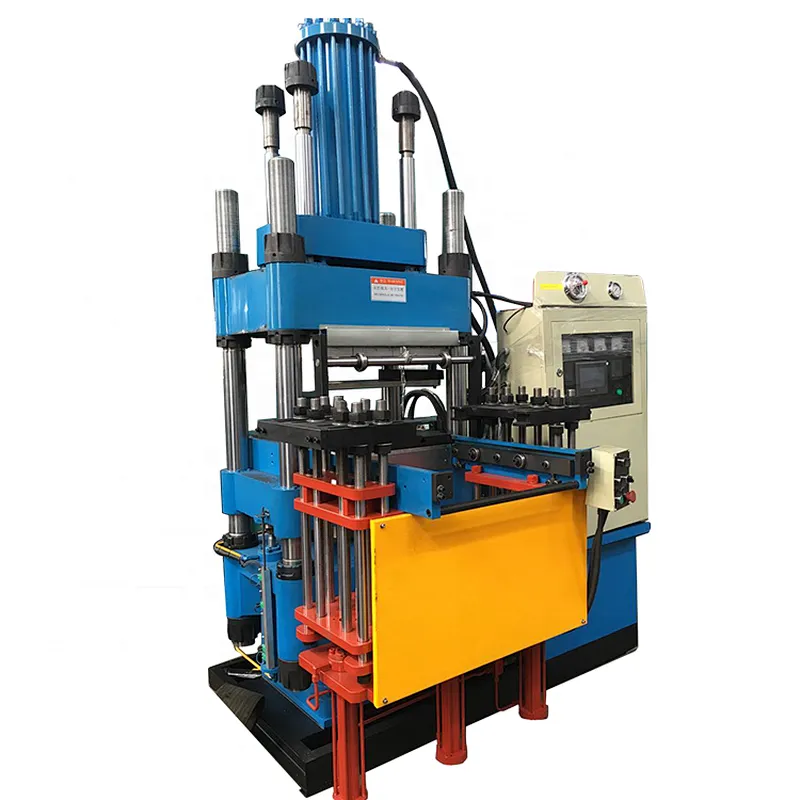

Model | XZB-630 | XZB-1000B | XZB-1000A | XZB-1600 | XZB-2000 | XZB-3000 |
Mold-locking force(KN) | 630 | 1000 | 1000 | 1600 | 2000 | 3000 |
Injection pressure(MPA) | 90 | 90 | 125 | 110 | 110 | 91 |
Material tank size(mm) | φ70×205 | φ80×220 | φ80×255 | φ90×275 | φ90×300 | φ120×377 |
Block stroke(mm) | 300 | 300 | 300 | 300 | 300 | 400 |
nject and press stroke(mm) | 360 | 360 | 380 | 450 | 480 | 530 |
Thermo-plate size(mm) | 400*400 | 440*480 | 520*540 | 520*540 | 550*600 | 700×700 |
Max.distance of thermo-plate(mm) | 250~350 | 275~500 | 200~400 | 200~400 | 180~480 | 280~750 |
Motor power(kw) | 4 | 6.2 | 6.2 | 6.2 | 8.5 | 5.5 |
