hot selling! open mill rubber mixing mill good quality open rubber mixing mill three roll mill

• Type:Rubber Refining Mill
• After-sales Service Provided:Engineers available to service machinery overseas
• Working diameter of rolls(mm):450
• Working length of roll(mm):2000
• Friction ratio of front roll(m/min):1:1.27
• Capacity per batch(kg):50-60
• Weight:11400kg
• Power(W):55KW
• Video outgoing-inspection:Provided
• Machinery Test Report:Provided
• Marketing Type:Ordinary Product
• Warranty of core components:1 Year
• Core Components:PLC
• Core Components:Engine
• Core Components:Bearing
• Core Components:Gearbox
• Core Components:Motor
• Core Components:Pressure vessel
• Core Components:Gear
• Condition:New
• Warranty:1 Year
• After-sales Service Provided:Field installation, commissioning and training
• Key Selling Points:Automatic
• After Warranty Service:Video technical support
• After Warranty Service:Online support
• After Warranty Service:Spare parts
• After Warranty Service:Field maintenance and repair service
• Local Service Location:India
• Applicable Industries:Manufacturing Plant
• Showroom Location:India
• Place of Origin:CN;SHN
• Diameter of Roll(mm):450
• Rotation Speed of Front Roll(rpm):21 - 22 rpm
• Length of Roll(mm):1200
• Roll Ratio(Front/Back):1:1.27
• Brand Name:HUICAI
• Voltage:380V 220V
• Dimension(L*W*H):5200x2000x1830
• Certification:CE,ISO9001
• Weight (KG):11400

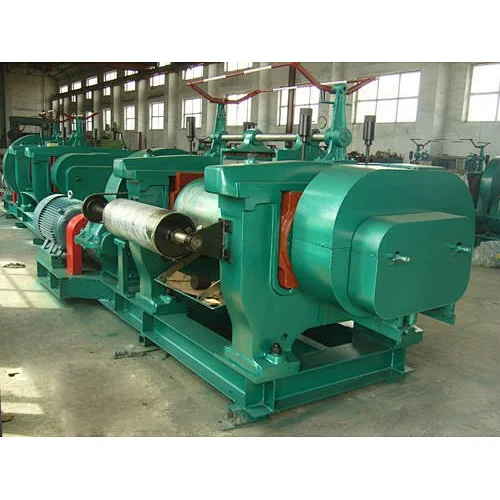

Refining Mill

The rubber refiner is mainly used for refining of reclaimed rubber and rubber sheeting. The rollers are made of chilled cast iron with wear-resistant hard surfaces. The two rollers are smooth ones with bored cavities and can be cooled homogeneously. The protective device is provided to protect the main parts from damage due to overload. In case of emergency, the safety rod is pulled down and the rollers will be stopped immediately.

Main Uses:

One another point different from the open mixing mill: the roller is of waist drum model and mainly used for stripping away impurity substance of reclaimed rubber.

Structure:

This machine consists of two rollers(waist drum model), base, frame, rack, transmission device, Bearing, Lubrication device, Decelerator, Adjustment device of the roller temperature, Emergency shutdown device and brake rigging, NGW Planetary hardened-gear Speed Reducer and etc.

Features:

1'Two rollers are made from Chilled Cast Iron, smooth surface is highly polished and scratch proof by cutting knife: high hardness and wear-resistant;

2'The roller is hollow structure, which is for adjusting the temperature of the rollers by steam or cooling water in term of different request;

3'The machine is equipped with an overload protection device to prevent the major components from being damaged due to overloading.

4'The machine is also equipped with an emergency device. When an emergent accident happens, just draw the safety pull-rod, and the machine will stop immediately. It is safe and reliable.

5'The machine is equipped with scraper and wind-up unit, which can take the reclaimed rubber away from the wind-up roller

We are professional manufacturer of machinery

About us--

QingdaoHUICAI Machine Manufacture Co., LTD.

1. has specialized in machine manufacture almost 20 years;(since 1996)

2.100% real manufacture meet all your requests;

3.CE,ISO Certification;

4.provide one year quality guarantee and long-term technical support;

5.provide all kinds of rubber machine:

Vulcanizing machine,Rubber mixing mill,Rubber crushing mill,Rubber refining mill,Rubber plastices kneading machine,Rubber injection&pressure molding machine,Vaccuum heat presses to model the machine, Hydraulic press, Rubber sheeting mill,Jaw type falt vulcanizer,Prevulcanization equipment,Hydraulic tyre vulcanizer,Automatism inner tube press vulcanizer, Foaming press; Conveyor belt production line, Sidewall belt production line, Conveyor belt forming line; Batch-off cooler (cooling line); Rubber cutteretc;

6.our machine are welcome by the world,popular in lots of markets

About Us:

We are a successful manufacturer and foreign trade company that has a good reputation of providing our customers with the best service and online buying experience in the business. Please feel free to email us or call us . Your email will be appreciate and we reply you as soon as possible.

Notice:

we can accept FOB,CIF,CFR,EXW,etc.

Payment Item:30%TT in advance,70% balance before shipment.

Delivery Time:usually 20-30 days after recieving the deposit,customize model depends on detailed parameter

Packing:bare packing, some parts are packed in wooden case.

Import duties, taxes,charges,and all the things to clear the custom are not included in the item price or shipping charges.These charges are the buyer's responsibility.

Please check with your country's customs office to determine what these additional costs will be prior to bidding/buying
If the items are damaged and lost during the shipping, we are not responsible of that. Please contact the shipping company.

You also can ask us to buy the insurance for you. Thank you for your cooperation.
