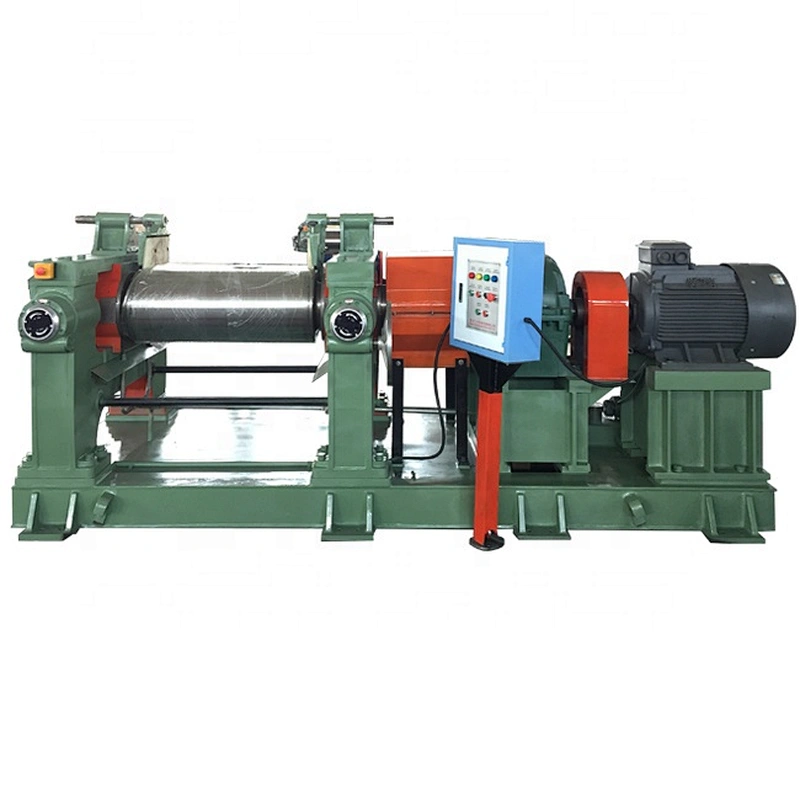

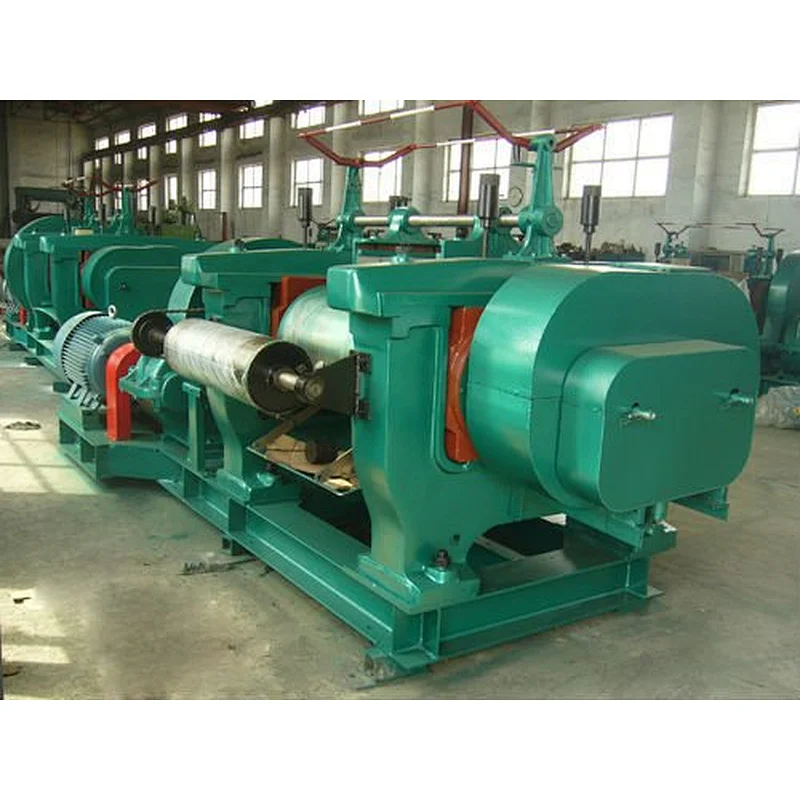

XKJ-450 Two roll Rubber Refiner Mill/waste tyre refinery processing machinery with CE ISO9001

• After-sales Service Provided:Engineers available to service machinery overseas
• Working diameter of rolls(mm):560front 510back
• Working length of roll(mm):1530
• Front roll surface speed(m/min):250-500
• (KW)Main motor power:27.7
• Friction ratio of front roll(m/min):1:1.2
• Capacity per batch(kg):50-60
• Driving motor power(kw):90
• Overall size(LXWXH)(mm):6120X2300X2000
• Weight(KN):220000
• Weight:22000kg
• Power(W):90KW
• Applicable Industries:Manufacturing Plant
• Condition:New
• Warranty:1 Year
• After-sales Service Provided:Field maintenance and repair service
• Key Selling Points:Automatic
• Type:Rubber Refining Mill
• Brand Name:HUICAI
• Voltage:380V 220V
• Dimension(L*W*H):6120x2300x2000
• Certification:CE,ISO9001
• Place of Origin:CN;SHN

Customize OEM/ODM SERVICE

WELCOME TO OUR FACTORY VISIT AND NEGOTIATION

Refining Mill

The rubber refiner is mainly used for refining of reclaimed rubber and rubber sheeting. The rollers are made of chilled cast iron with wear-resistant hard surfaces. The two rollers are smooth ones with bored cavities and can be cooled homogeneously. The protective device is provided to protect the main parts from damage due to overload. In case of emergency, the safety rod is pulled down and the rollers will be stopped immediately.

Main Uses:

One another point different from the open mixing mill: the roller is of waist drum model and mainly used for stripping away impurity substance of reclaimed rubber.

Structure:

This machine consists of two rollers(waist drum model), base, frame, rack, transmission device, Bearing, Lubrication device, Decelerator, Adjustment device of the roller temperature, Emergency shutdown device and brake rigging, NGW Planetary hardened-gear Speed Reducer and etc.

Features:

1'Two rollers are made from Chilled Cast Iron, smooth surface is highly polished and scratch proof by cutting knife: high hardness and wear-resistant;

2'The roller is hollow structure, which is for adjusting the temperature of the rollers by steam or cooling water in term of different request;

3'The machine is equipped with an overload protection device to prevent the major components from being damaged due to overloading.

4'The machine is also equipped with an emergency device. When an emergent accident happens, just draw the safety pull-rod, and the machine will stop immediately. It is safe and reliable.

5'The machine is equipped with scraper and wind-up unit, which can take the reclaimed rubber away from the wind-up roller
