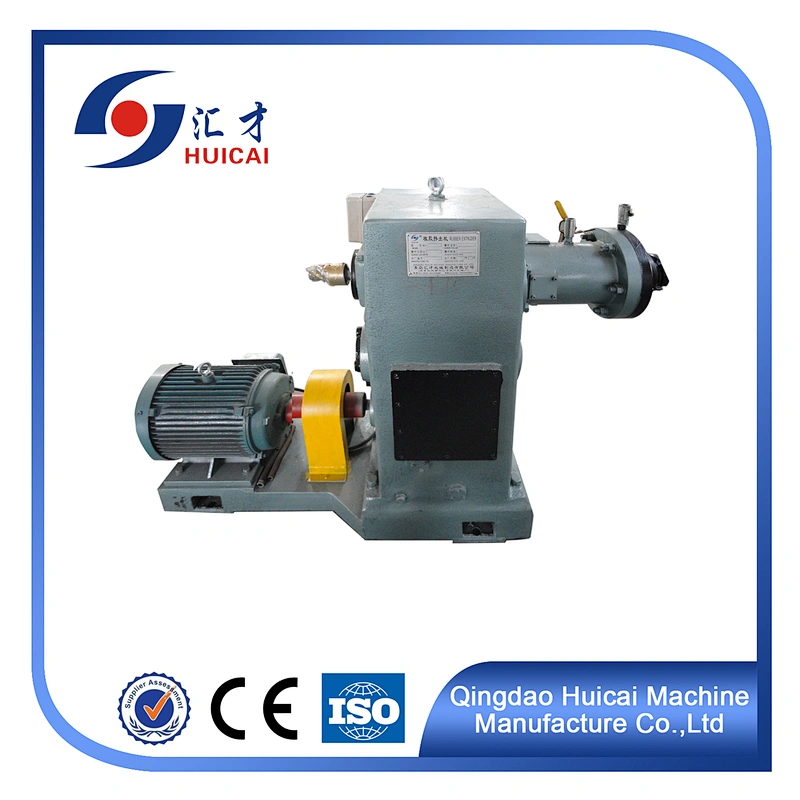

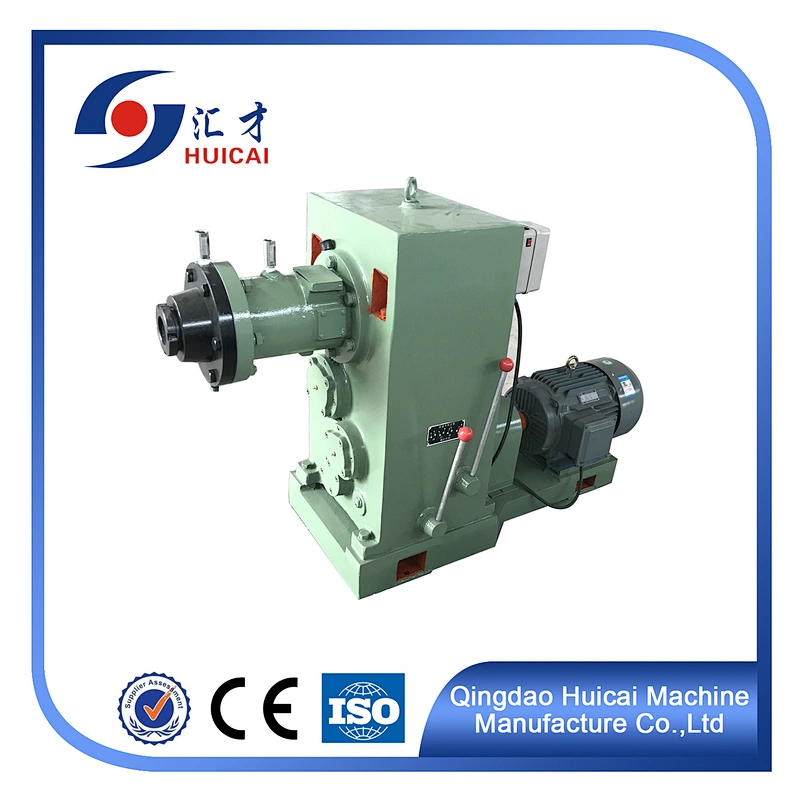

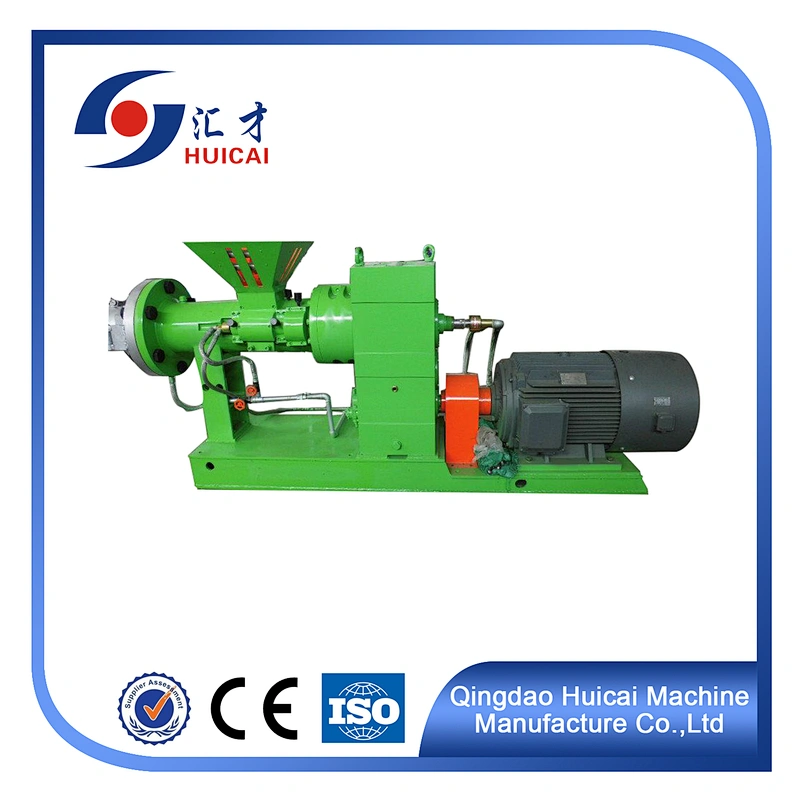

factory price shirr extruding machinery

Model NO.: factory price shirr extruding machinery
Minimum order quantity: 1 set
Supply Ability: 200 set / Month
Country of Origin: Qingdao

Quantity:

Product Description

Place of Origin:CN;SHN
Condition:New
Warranty:1 Year
After-sales Service Provided:Field installation, commissioning and training
Key Selling Points:Automatic
After Warranty Service:Field maintenance and repair service
Local Service Location:Sri Lanka
Local Service Location:India
Showroom Location:Sri Lanka
Showroom Location:India
Applicable Industries:Building Material Shops
Applicable Industries:Manufacturing Plant
Applicable Industries:Machinery Repair Shops
Applicable Industries:Construction works
Applicable Industries:Energy & Mining
Output (kg/h):80 kg/h
Screw diameter (mm):65
Screw Speed (rpm):20.27 - 35.47
Screw L/D Ratio:4
Brand Name:HuiCai
Voltage:customer requested
Dimension(L*W*H):sized
Power (kW):7.5
Weight (KG):1500 KG
Certification:CE ISO
Year:new

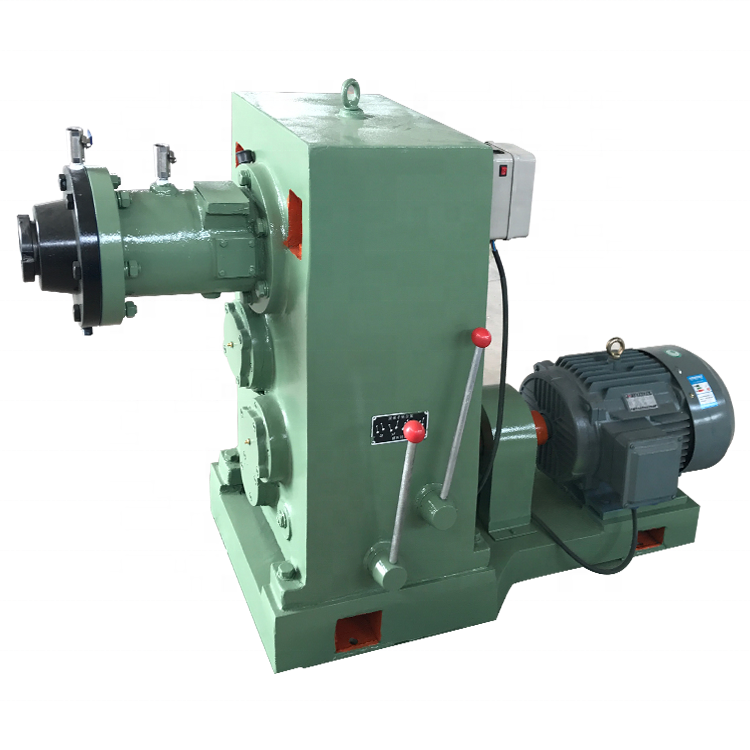

Type:Rubber Extruder
color:blue
waranty:one year life
certification:ISO 9001
control:Automatic or Semi-automatic
Power(W):1-55kw
Weight:1-55t

Parameter Product Type	XJ-65	XJ-85	XJ-115	XJ-150	XJ-200	XJ-250
Screw Thread Type	Dual Head Same	Dual Head Same	Dual Head	Dual Head	Dual Head	Dual Head
Screw Exterior Dia.	65	85	115	155	200	250
Ratio L/D	4	4.3	4.8	4.43	4.35	4.5
Condensation Ratio		1.3	1.3	1.34
Screw Rotate Speed r/min	20.27.35.47	28.40.56.80	33.46.60	27-81	22.4-67.2	19.7-59.1
Motor Power kw	7.5	11/15	22	18.3-55Commutator Motor	25-75Commutator Motor	33.3-100Commutator Motor
Throughput kg/n	50-80	70-210	100-420	700-1200	1500-2200	2000-3200
Steam PressureMpa	0.2-0.3	0.3-0.4	0.4-0.6	0.6	0.6-0.8	0.6-0.8
Cold Moving Water Pressure Mpa	0.2-0.3	0.2-0.3	0.2-0.3	0.2	0.2-0.3	0.2-0.3
Condensed Air Pressure Mpa					0.3-0.6	0.6
Overall Size: LxWxH(mm)	1630x604 x1050	2050x700 x1200	1630x604 x1050	3411x814 x1470	4564x1800 x1750	4950x1150 x1483
Product Weight kg(not include the head)	1200	2500	3000	5000	8000	11400

We can also design and produce according to customer’s requirement. If you are interested in our products or have any questions, please contact us freely. We will try our best to meet your requirement in the first time

Company Information

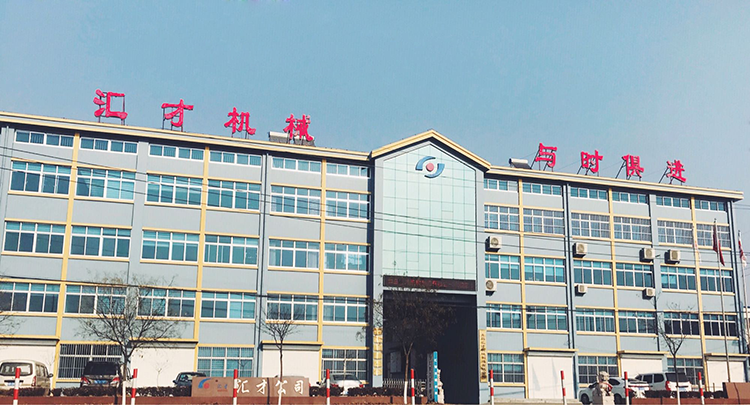

(1) Qingdao HUICAI Machinery Manufacturing Co., Ltd. was founded in1996;
(2)100% of the factory, to meet all your requirements;
(3)CE,ISO9001certification;
(4) a one-year warrantyandlong-term technical support;
(5) Supply of all kinds of rubber machinery: vulcanizing machine, rubber mixer, broken plastic machine, rubber refiner, rubber kneading machine, rubber injection molding machines, vacuum hot press molding machine, hydraulic machine, rubber tableting machine, jaw vulcanizing machine malfunction, pre-curing equipment, hydraulic tire curing machine, automatic tube curing machine, foam machine; conveyor belt production line, sidewall belt production line, molding line conveyor; batch closed cooler (cold); cut plastic machine;
(6) The company has import and export rights, the products are exported to countries and regions in the United States, South Korea, Japan, Thailand, Germany;
(7) 2012 was awarded the"AAA grade credit enterprise"and"integrity enterprises in Qingdao City,"the title. _20180106133424 1522052816(1) ISO9001 of rubber press machine and mixing mill_
