- Screw Thread Type:Dual Head Same
- Screw Exterior Dia (mm):150
- Ratio L/D:16:1
- Motor Power (kw):185
- Throughput(kg/n):2000
- Weight:7250kgs
- Overall Dimension:6000x2600x1800
- Max screw speed r/min:44
- pin qty of each row:12
- Condition:New
- Video outgoing-inspection:Provided
- Machinery Test Report:Provided
- Marketing Type:Ordinary Product
- Warranty of core components:1 Year
- Core Components:Engine
- Core Components:Gearbox
- Core Components:Motor
- Warranty:1 Year
- After-sales Service Provided:Field maintenance and repair service
- Key Selling Points:Automatic
- After Warranty Service:Field maintenance and repair service
- Local Service Location:India
- Showroom Location:India
- Applicable Industries:Manufacturing Plant
- Place of Origin:CN;SHN
- Output (kg/h):2000
- Screw diameter (mm):150
- Screw Speed (rpm):44 - 45 rpm
- Screw L/D Ratio:16:1
- Brand Name:HUICAI
- Voltage:380V
- Dimension(L*W*H):6000x2600x1800
- Power (kW):XJD-150
- Weight (KG):7250
- Certification:CE,ISO9001
WELCOME TO OUR FACTORY VIST AND NEGOTIATION

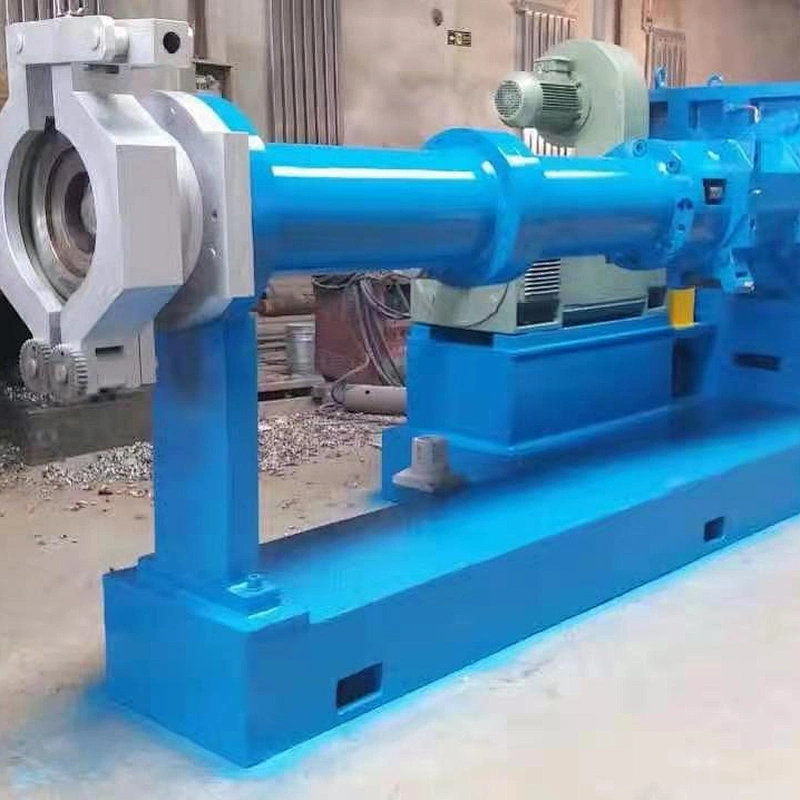

It is used for producing smooth smooth surface , hard smooth surface , tough rubber plastic
- Foam tube
- FoamBoard
- FoamSheet
- FoamCarpet
- EVA yoga mat
The L/D ration must be 16:1 , and it must be euiped with a long enough secondary screw structure, to ensure rubber, plastic two polymer materials fully blend and dissolve. The final product with high strength, good elasticity, low solubility, and the physical indexes, permeability coefficient, thermal conductivity and vacuum water absorption are more excellent.
Specifications
| TYPE | XJD-90 | XJD-120 | XJD-150 | XJD-200 | XJD-200 | XJD-250 |
Screw dia. mm | 90 | 120 | 150 | 200 | 200 | 250 |
| L/D | 14:1 | 14:1 | 16:1 | 18:1 | 12:1 | 12:1 |
Max.screw speed r/min | 60 | 55 | 44 | 33 | 26 | 22.63 |
Hopper mm | 130X122 | 164X140 | 200X165 | 260X210 | 260X210 | 320X246 |
Row qty of pin | 8 | 10 | 10 | 12 | 10 | 10 |
Pin qty of each row | 6 | 6 | 8 | 10 | 10 | 12 |
Model of motor | Z4-200-21 | Z4-200-31 | Z4-250-21 | Z4-280-32 | Z4-280-11 | Z4-280-32 |
Motor power kw | 67 | 90 | 185 | 315 | 250 | 315 |
Zone of hot water circulation | 4 | 4 | 4 | 4 | 3 | 4 |
Hot water circulation heating power kw | 24 | 48 | 48 | 54 | 42 | 48 |
Capacity kg/h | 360 | 800-1000 | 1800-2000 | 2100-2600 | 2300 | 3000 |
Overall size mm | 2540X1493X1416 | 3996X1575X1760 | 6000X2600X1800 | 7770X3000X2035 | 6250X3000X2035 | 6885X2400X2090 |
Weight T | 4.5 | 6 | 7.25 | 16.6 | 12.6 |
We are professional manufacturer of machinery
About us--
QingdaoHUICAI Machine Manufacture Co., LTD.
1. has specialized in machine manufacture almost 20 years;(since 1996)
2.100% real manufacture meet all your requests;
3.CE,ISO Certification;
4.provide one year quality guarantee and long-term technical support;
5.provide all kinds of rubber machine:
Vulcanizing machine,Rubber mixing mill,Rubber crushing mill,Rubber refining mill,Rubber plastices kneading machine,Rubber injection&pressure molding machine,Vaccuum heat presses to model the machine, Hydraulic press, Rubber sheeting mill,Jaw type falt vulcanizer,Prevulcanization equipment,Hydraulic tyre vulcanizer,Automatism inner tube press vulcanizer, Foaming press; Conveyor belt production line, Sidewall belt production line, Conveyor belt forming line; Batch-off cooler (cooling line); Rubber cutteretc;
6.our machine are welcome by the world,popular in lots of markets
We are a successful manufacturer and foreign trade company that has a good reputation of providing our customers with the best service and online buying experience in the business. Please feel free to email us or call us . Your email
will be appreciate and we reply you as soon as possible.
Notice:
we can accept FOB,CIF,CFR,EXW,etc.
Payment Item:30%TT in advance,70% balance before shipment.
Delivery Time:usually 20-30 days after recieving the deposit,customize model depends on detailed parameter
Packing:bare packing, some parts are packed in wooden case.
If you are interested,please inquiry.
