- Type:Rubber Extruder
- Screw Thread Type:Dual Head Same
- Screw Exterior Dia.(mm):150
- Ratio L/D:16:1
- Screw Rotate Speed r/min:44
- Throughput(kg/n):2000
- Product name:High quality Roller-head extruder with CE ISO9001
- Condition:New
- Video outgoing-inspection:Provided
- Machinery Test Report:Provided
- Marketing Type:Ordinary Product
- Warranty of core components:1 Year
- Core Components:PLC
- Core Components:Bearing
- Core Components:Gearbox
- Core Components:Motor
- Warranty:1 Year
- After-sales Service Provided:Field maintenance and repair service
- Key Selling Points:Automatic
- After Warranty Service:Field maintenance and repair service
- Local Service Location:India
- Showroom Location:India
- Applicable Industries:Manufacturing Plant
- Place of Origin:CN;SHN
- Output (kg/h):2000
- Screw diameter (mm):150
- Screw Speed (rpm):43 - 45 rpm
- Screw L/D Ratio:16:1
- Brand Name:HUICAI
- Voltage:380V
- Dimension(L*W*H):6000x2600x1800
- Power (kW):185
- Weight (KG):7250
- Certification:CE,ISO9001

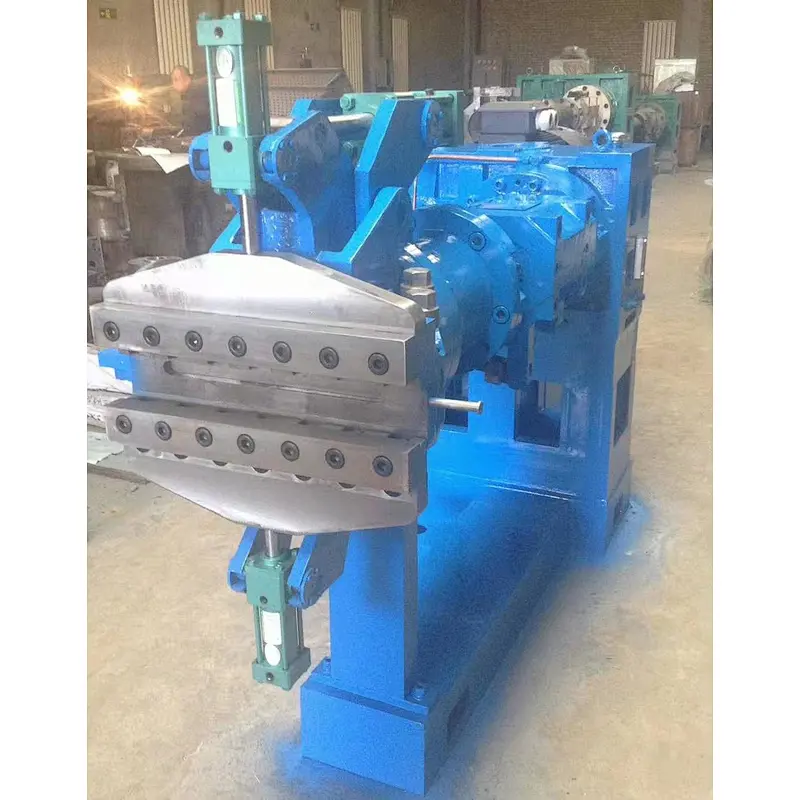

High quality Roller-head extruder with CE ISO9001
Customize OEM/ODM SERVICE
WELCOME TO OUR FACTORY VIST AND NEGOTIATION

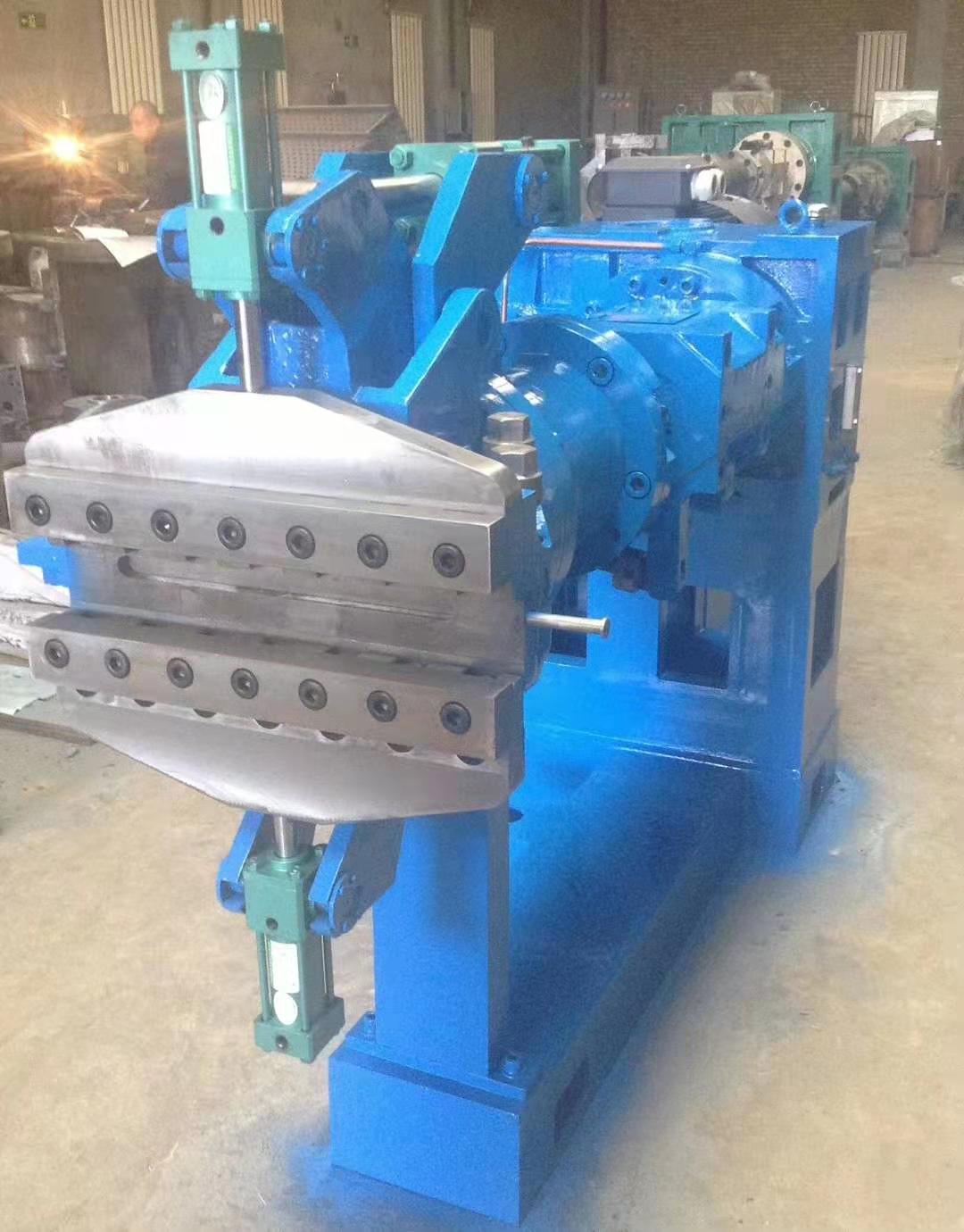

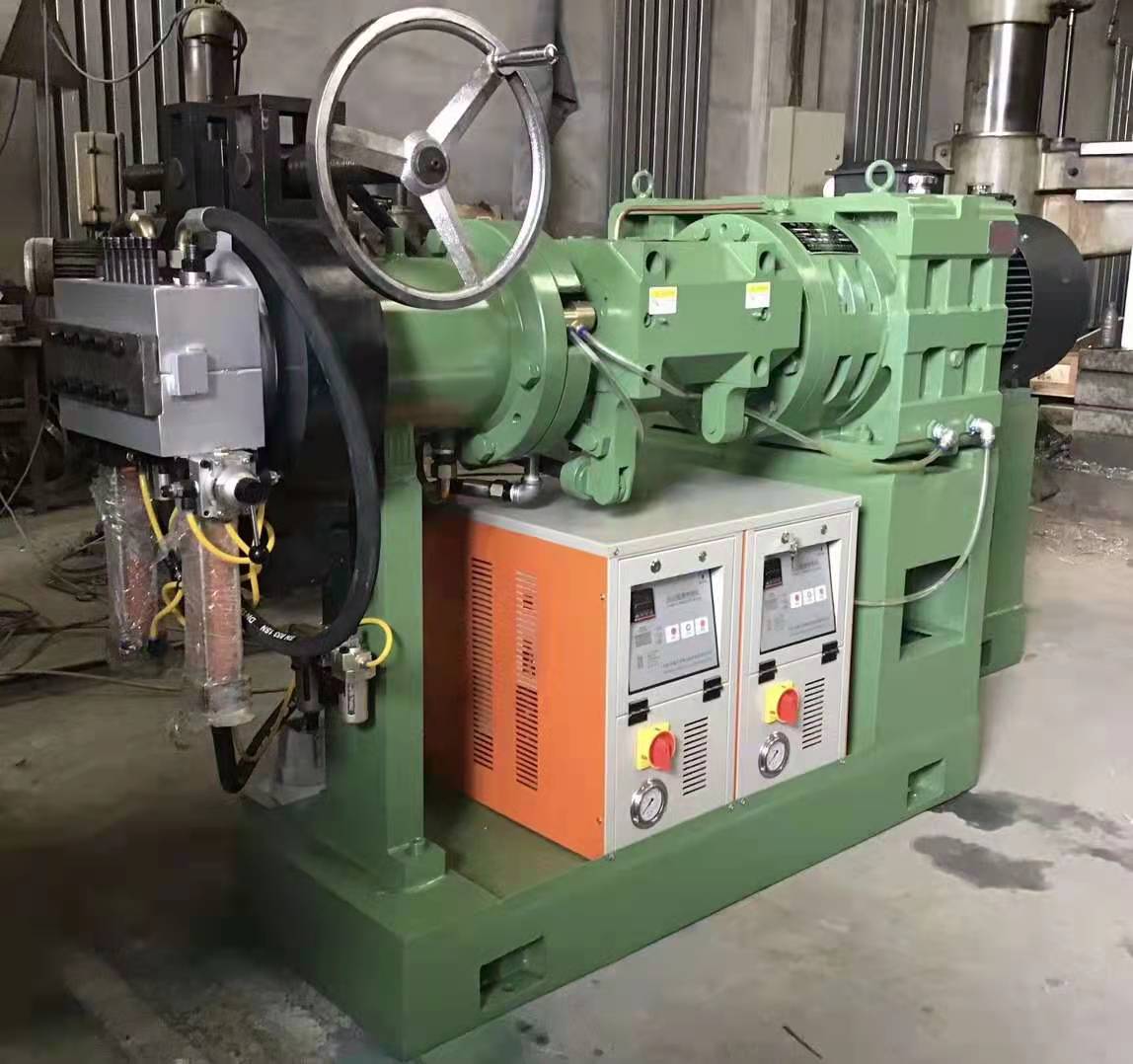

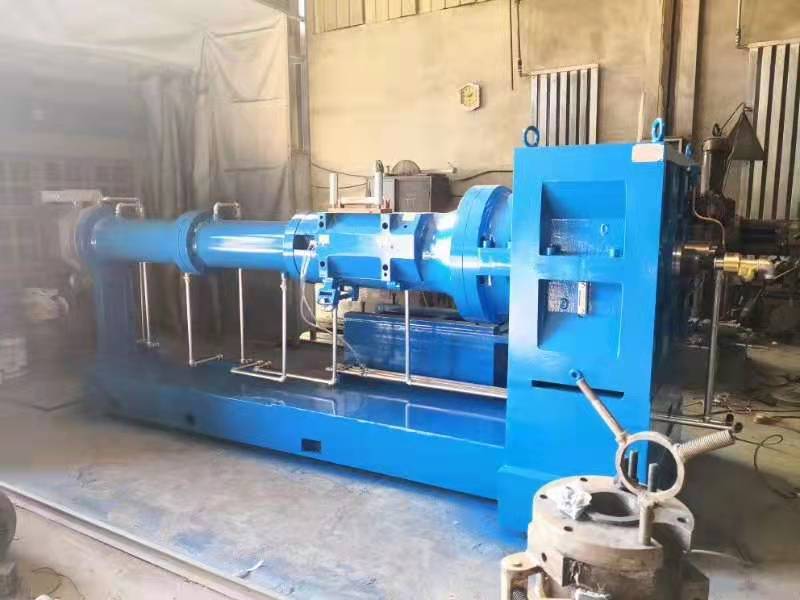

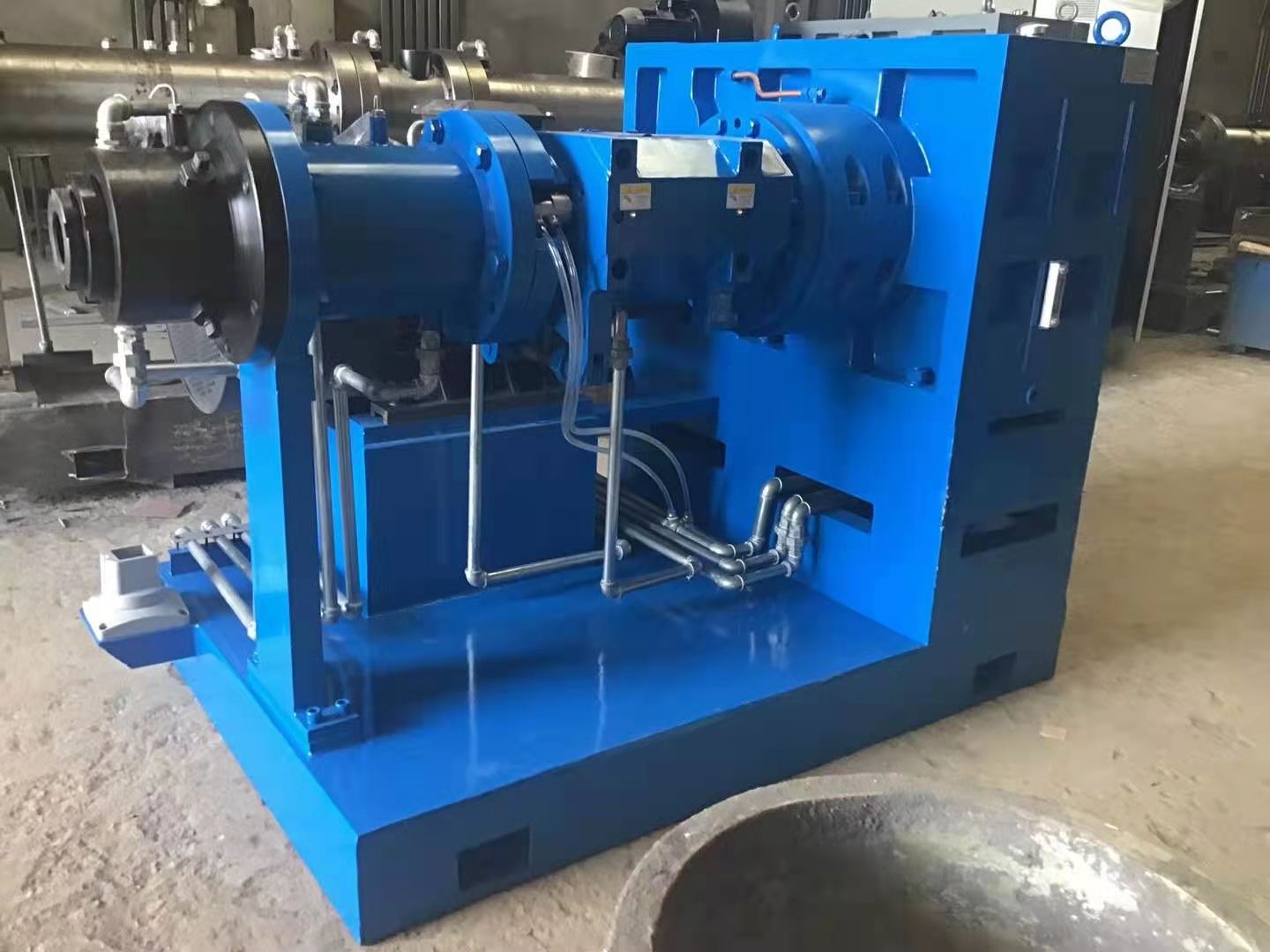

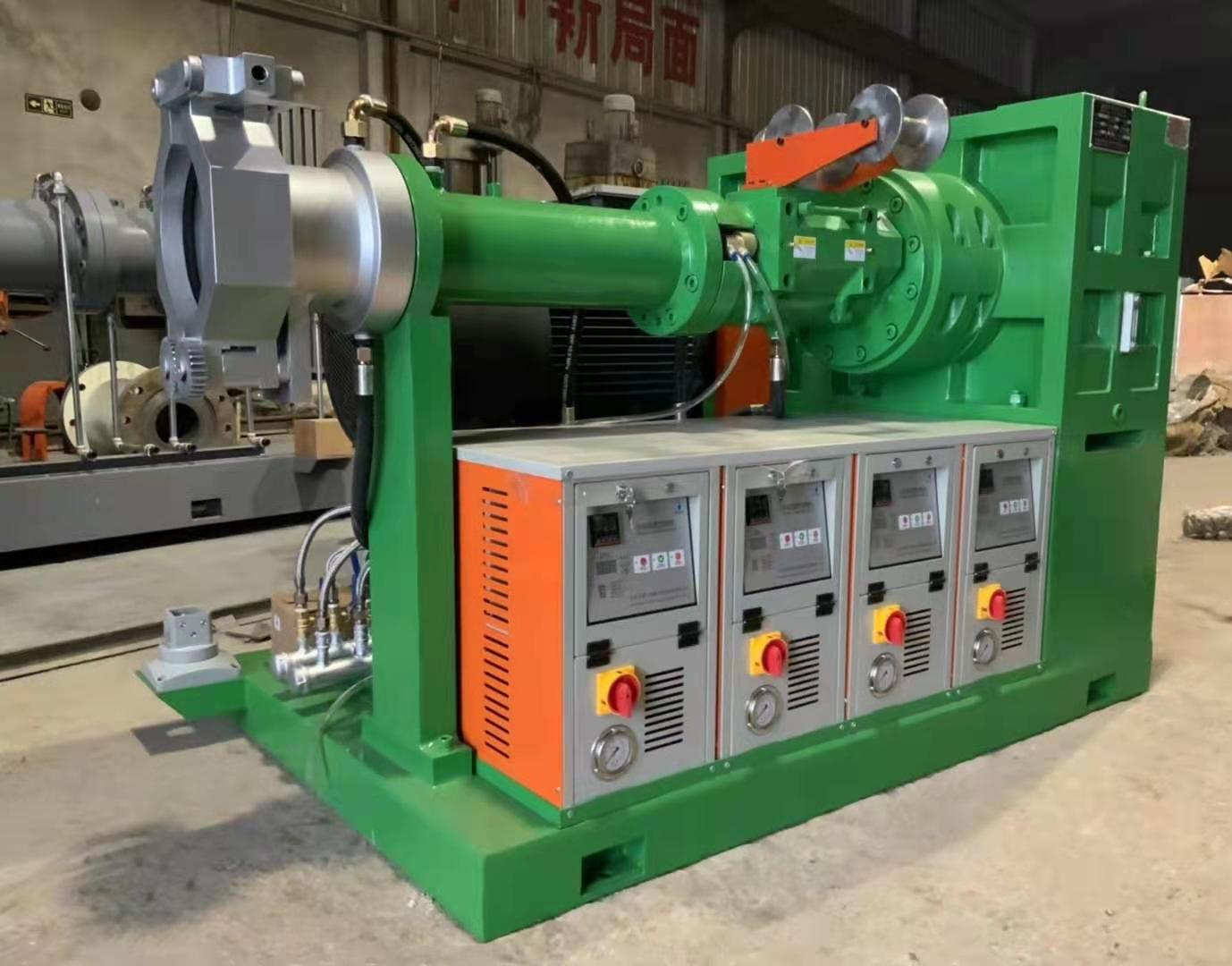

The Extruder is consist of screw,machine barrel,headpiece,fixing patter device,pulling device ,cutting device,batching device and transmission device and control system, the headpiece is extrusion mould. It is mainly applied to extrude rubber and plastic products.
This rubber extruder is superior quality, dependable performance.
And it is main used for extruding tube, hose.
This rubber extruder of hot feeding and single screw extruding, with adjustable speed. Changing the head of the machine can obtain various extruding, semi-finished products and forming sheets and filter rubber for coating. It can be used widely in extruding.

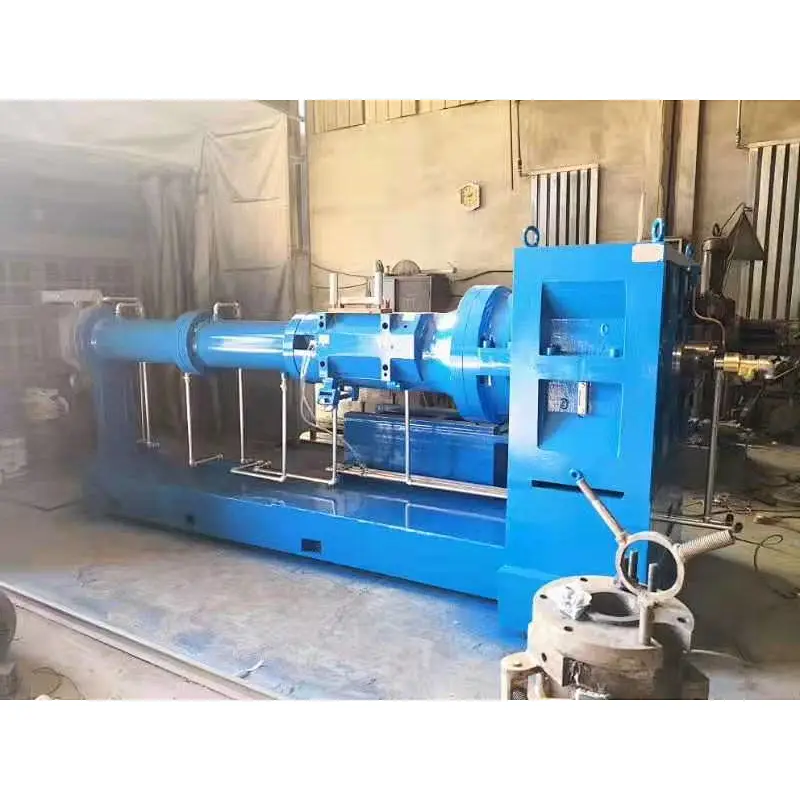

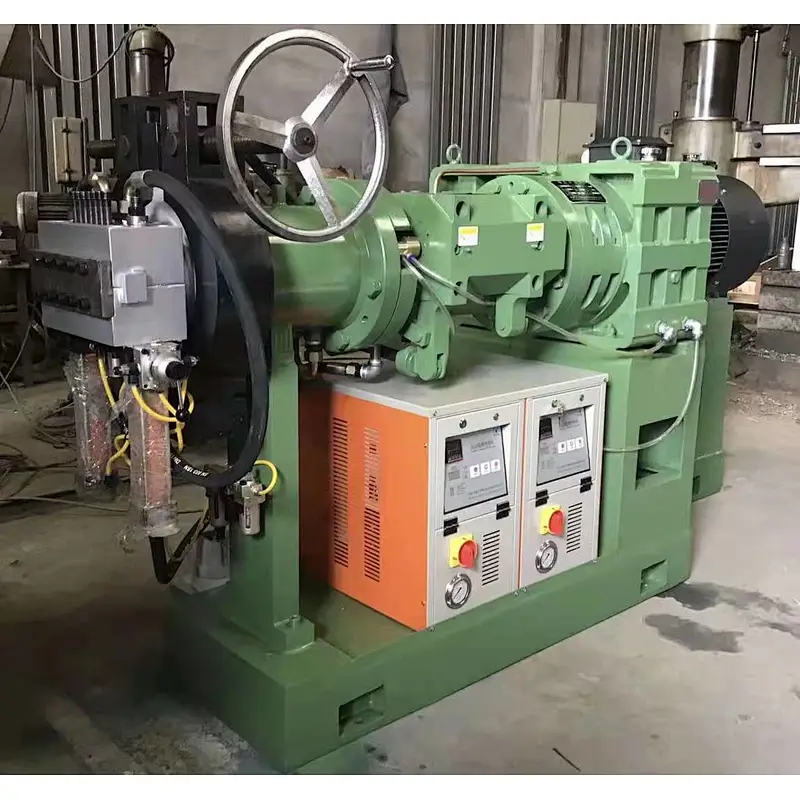

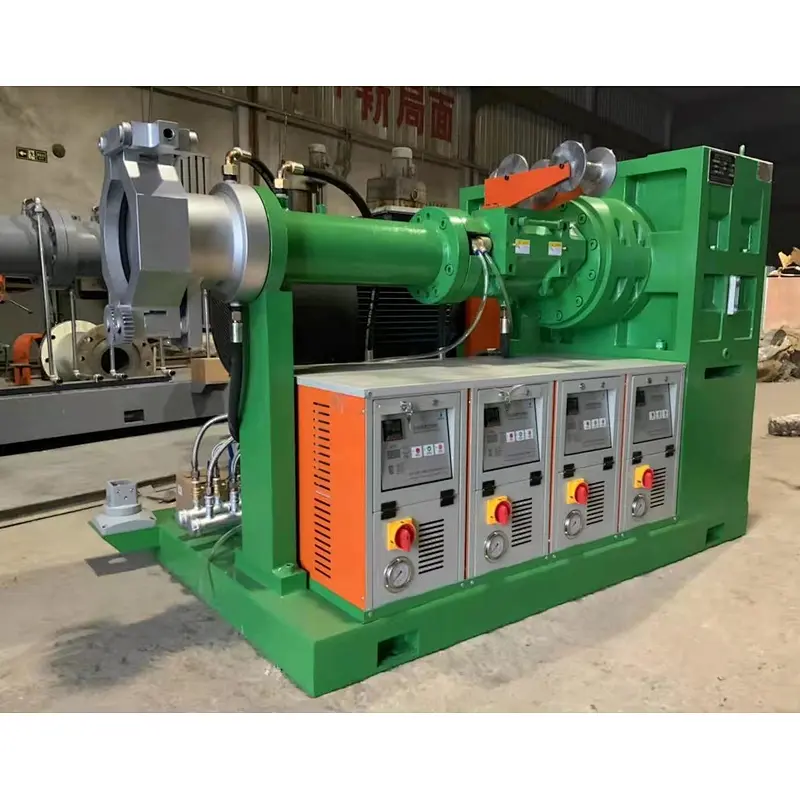

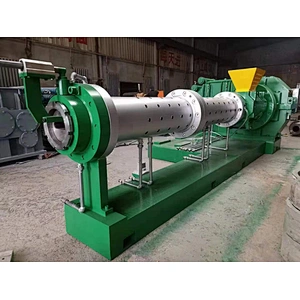

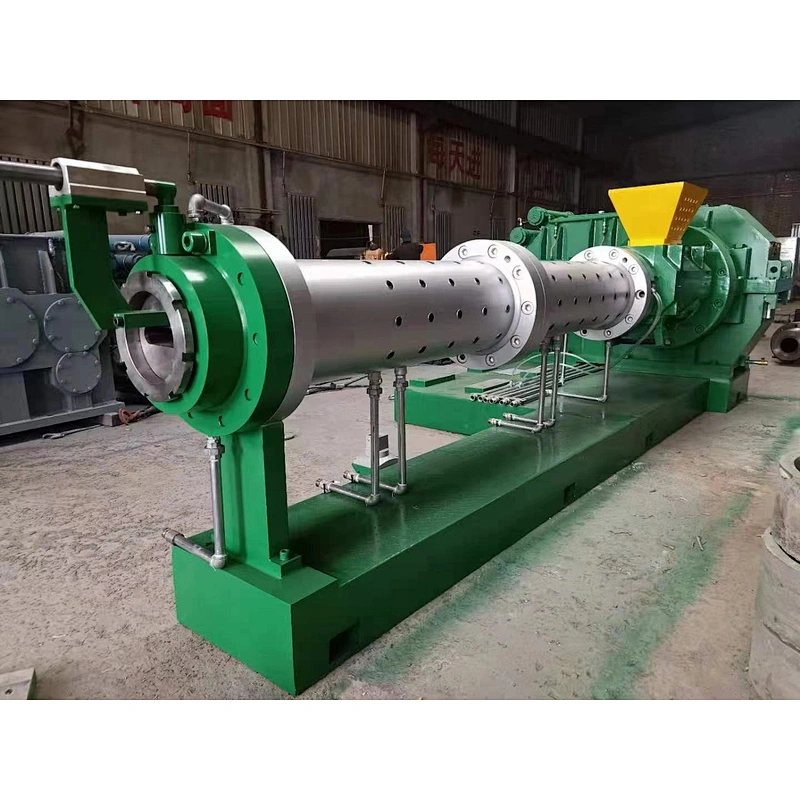

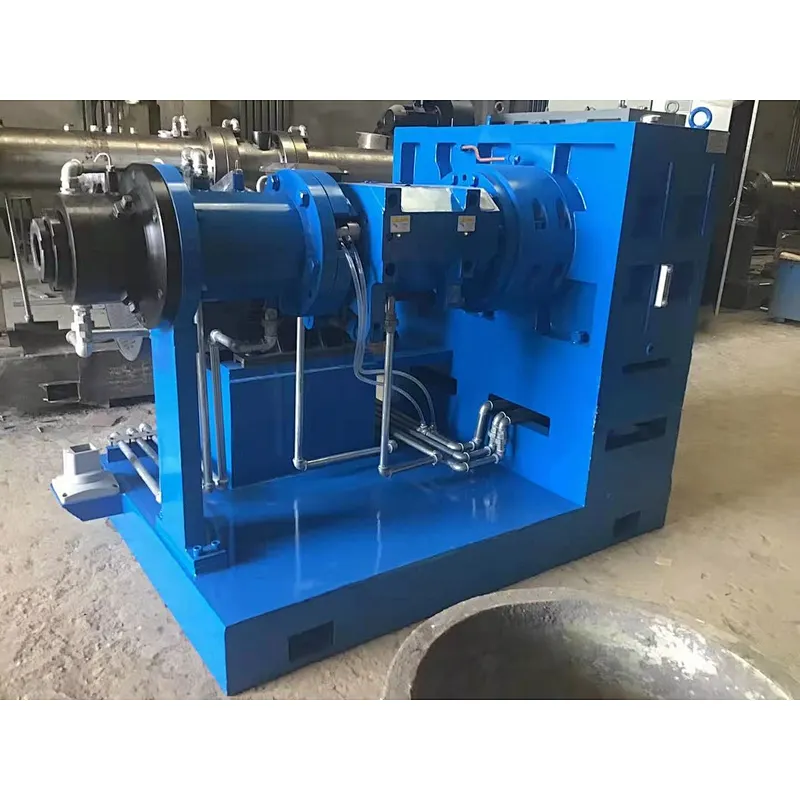

Rubber Extruder.
The use of quipment: this equipment is mainly used for various types of car rubber hose, strengthen rubber hose heterogeneous type rubber hose; The extrusion of various kinds of vehicles with single extrusion rubber sealing strips, double composite sealing strips, three composite sealing strips and four composite sealing strips; All kinds of small and medium-sized industrial rubber hose extrusion;Textile rollers,aprons and other extrusion.
Structural features:exhaust cold feeding extruder screw according to the flowstate of rubber narrow compressed section screw slot can be divided into general cold-row screw and shear strong cold-row screw. Screw have feeding section, compression section, throttling section, exhaust segment and extrusion section.Throttling section use screw of the same distance and depth shallow slot,can make the rubber obtain higher shearing and stable conveying process,and also improves exhaust effect.
The equipment including motor, gear box, feeding device,barrel, screw, head, temperature control device,vacuum pump, electronic control system and rack, etc.
We are professional manufacturer of machinery

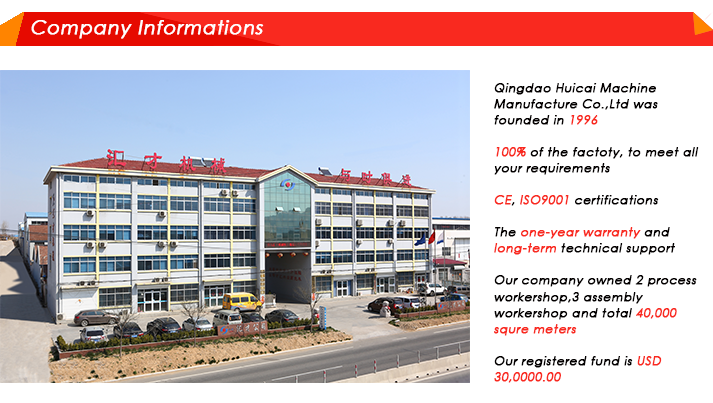

About us--
QingdaoHUICAI Machine Manufacture Co., LTD.
1. has specialized in machine manufacture almost 20 years;(since 1996)
2.100% real manufacture meet all your requests;
3.CE,ISO Certification;
4.provide one year quality guarantee and long-term technical support;
5.provide all kinds of rubber machine:
Vulcanizing machine,Rubber mixing mill,Rubber crushing mill,Rubber refining mill,Rubber plastices kneading machine,Rubber injection&pressure molding machine,Vaccuum heat presses to model the machine, Hydraulic press, Rubber sheeting mill,Jaw type falt vulcanizer,Prevulcanization equipment,Hydraulic tyre vulcanizer,Automatism inner tube press vulcanizer, Foaming press; Conveyor belt production line, Sidewall belt production line, Conveyor belt forming line; Batch-off cooler (cooling line); Rubber cutteretc;
6.our machine are welcome by the world,popular in lots of markets
About Us:
We are a successful manufacturer and foreign trade company that has a good reputation of providing our customers with the best service and online buying experience in the business. Please feel free to email us or call us . Your email
will be appreciate and we reply you as soon as possible.
Notice:
we can accept FOB,CIF,CFR,EXW,etc.
Payment Item:30%TT in advance,70% balance before shipment.
Delivery Time:usually 20-30 days after recieving the deposit,customize model depends on detailed parameter
Packing:bare packing, some parts are packed in wooden case.
If you are interested,please inquiry.
