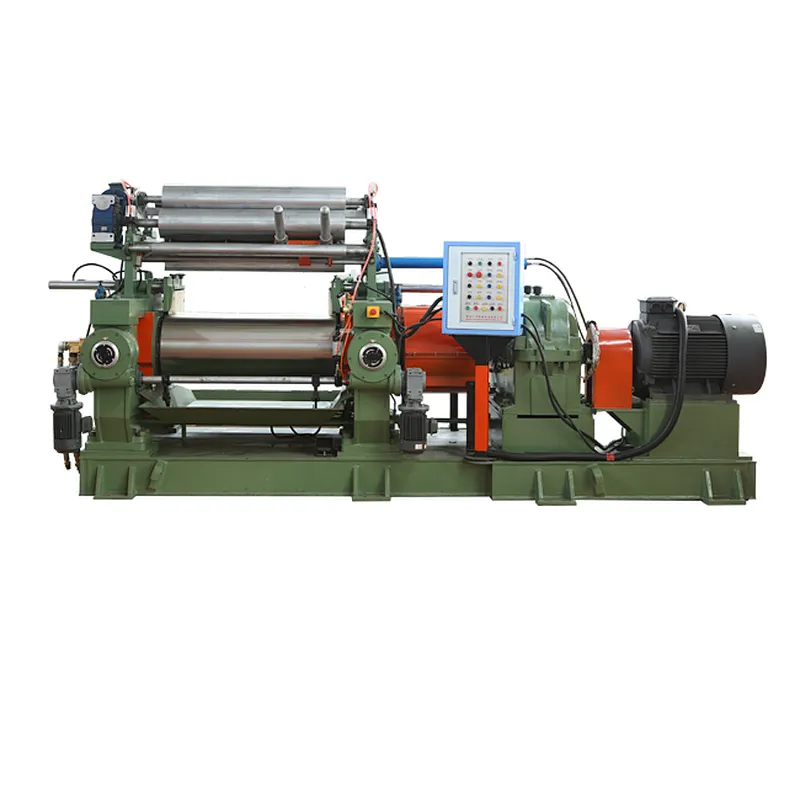

Open Two Roll Rubber Mixing Mill Machine With Ce Certificate

Open Two Roll Rubber Mixing Mill Machine With Ce Certificate

Model NO.: Open Two Roll Rubber Mixing Mill Machine With Ce Certificate
Minimum order quantity: 1 set
Supply Ability: 20 set / Month
Country of Origin: Qingdao

Quantity:

Product Description

Condition:New
Place of Origin:CN;SHN
After-sales Service Provided:Free spare parts
Warranty:1Year
Brand Name:Huicai
Voltage:380V
Power:75KW
Dimension(L*W*H):3580*1550*1695
Weight:4T
Certification:CE and ISO9001
Type:Open Mixing Mill
After-sales Service Provided:Engineers available to service machinery overseas
certification:ISO 9001/CE
warranty:one year life
Color:blue/green
Model:xk-400

Product Description

Type:Rubber Mixing Mill

xk-160,xk-250,xk-300,XK-400,xk-450,xk-560

Pictures:

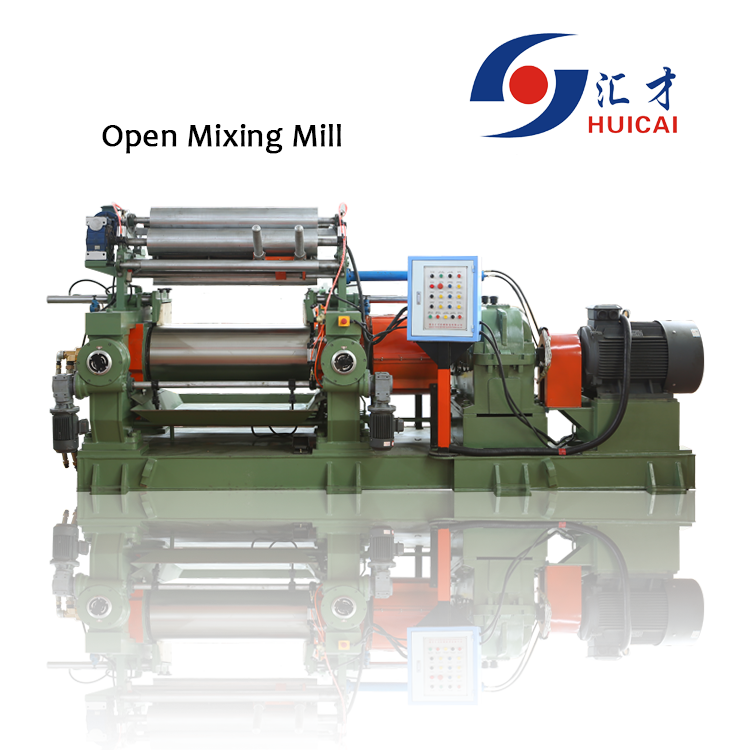

RUBBER MIXING MILL

open mixing mill.png

This type is BEARING BUSHwithHARDENED GEAR REDUCER.

This advantage: This type has lower noisy and long use life.

We use good quality steel material and famous brand electrial parts

to make sure the best quality of mixing mill.

Parameters:

Our standard model of mixing mill, meet your every requirements for lab and natrual rubber or silicone rubber mixing.

Model		XK-160	XK-250	XK-300	XK-360	XK-400	XK-450	XK-560
Roll diameter(mm)		φ160	φ250	φ300	φ360	φ400	φ450	φ560
Working length of roll(mm)		320	620	750	900	1000	1200	1530
Linear speed of front roll(m/min)		11.24	14.4	15.1	16.25	18.65	24.5	29.09
Speed ratio of front & back roll		1:1.35	1:1.17	1:1.27	1:1.25	1:1.27	1:1.27	1:1.2
Max. roll distance(mm)		4.5	8	8	10	10	15	20
Feeding capacity per time(kg)		1-2	10-15	15-20	20-25	18-35	25-50	50-65
Driving motor power(kw)		7.5	18.5	22	30	37	55	75
Outside dimension(mm)	Length	1080	3400	3580	3780	4250	5200	6120
	Width	796	1500	1550	1850	1850	2380	2282
	Height	1415	1500	1695	1740	1870	1770	2000

Company Information

Why choose our company? Qingdao Huicai Machinery Manufacturing Co., Ltd. is an export-oriented enterprise based on Qingdao Jiaonan Huicai Rubber Machinery Factory. Founded in October 1996, we have over 20 years' history in manufacturing rubber machinery. We can provide all technical support, best after-sell service for all you require.
1)AAA grade credit enterprise and Ce and Iso 9001
2) With 20 years experience in manufacturing rubber machines has become one of the biggest company in China.
3)Exported to more than 20 contries with good quality. Example: The good year company in Chile...
Management Concept:Survive by Quality, Develop by Credit, Innovate by Technology, Improve by precision. Times Concept: People Oriented, Scientific Development, Advance with Times, Innovative creation. Work Concept:Hardworking Practical, Conscientious and Meticulous.
Why choose our rubber mixing mill machine?
1. Roller is made by special technology. There are normal roller and alloy roller for the customer to choose.
2. All of these adopt hardened gear reducer made of 35CrMo to reduce the speed. It has the advantages of low noisy, large transmission power, wear-resistant and impact resistance.
3. Adopt quenching gear to drive and increase the life of the whole machine.
4. Adopt foreign technology to weld the steel pedestal which is non-deformation, non-fracture. It can avoid the expense caused by wrong operation.
rubber mixing mill, cold rolling mill,Use for mixing the compond rubber to this kind rubber sheet as below:

Why choose our company?

Qingdao Huicai Machinery Manufacturing Co., Ltd. is an export-oriented enterprise based on Qingdao Jiaonan Huicai Rubber Machinery Factory. Founded in October 1996, we have over 20 years' history in manufacturing rubber machinery.

We can provide all technical support, best after-sell service for all you require.

1)AAA grade credit enterprise and Ce and Iso 9001

2) With 20 years experience in manufacturing rubber machines has become one of the biggest company in China.

3)Exported to more than 20 contries with good quality. Example: The good year company in Chile...

Management Concept:Survive by Quality, Develop by Credit, Innovate by Technology, Improve by precision.

Times Concept: People Oriented, Scientific Development, Advance with Times, Innovative creation.
Work Concept:Hardworking Practical, Conscientious and Meticulous.

Why choose our rubber mixing mill machine?

1. Roller is made by special technology. There are normal roller and alloy roller for the customer to choose.

2. All of these adopt hardened gear reducer made of 35CrMo to reduce the speed. It has the advantages of low noisy, large transmission power, wear-resistant and impact resistance.

3. Adopt quenching gear to drive and increase the life of the whole machine.

4. Adopt foreign technology to weld the steel pedestal which is non-deformation, non-fracture. It can avoid the expense caused by wrong operation.

rubber mixing mill, cold rolling mill,Use for mixing the compond rubber to this kind rubber sheet as below:

All kinds of rubber mixing mill: Lab rubber mixing mill,nylon type rubber mixing mill,copper bush mixing mill,bearing type mixing mill.

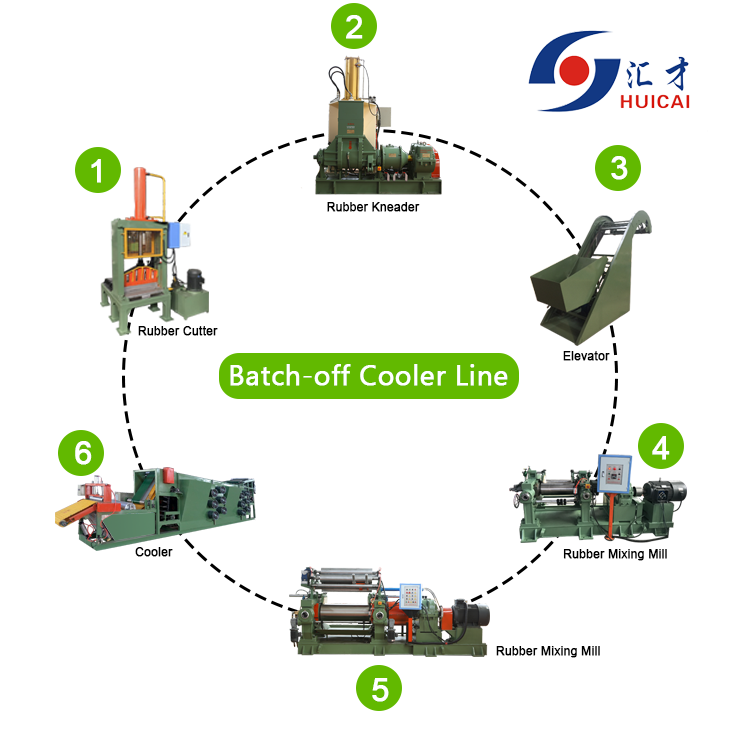

WHOLE MIXING LINE WE CAN PROVIDE THE WHOLE PRODUCTION LINE MACHINE FOR YOU!

All kinds of rubber mixing mill:

Lab rubber mixing mill,nylon type rubber mixing mill,copper bush mixing mill,bearing type mixing mill.

WHOLE MIXING LINE
