- Condition:New
- Place of Origin:CN;SHN
- Warranty:1 Year
- After-sales Service Provided:Field maintenance and repair service
- After-sales Service Provided:Video technical support
- After-sales Service Provided:Field installation, commissioning and training
- After-sales Service Provided:Online support
- Key Selling Points:High Safety Level
- After Warranty Service:Video technical support
- After Warranty Service:Online support
- After Warranty Service:Spare parts
- After Warranty Service:Field maintenance and repair service
- Local Service Location:Sri Lanka
- Local Service Location:India
- Applicable Industries:Manufacturing Plant
- Showroom Location:Chile
- Showroom Location:Sri Lanka
- Showroom Location:Bangladesh
- Showroom Location:Ukraine
- Showroom Location:United States
- Showroom Location:France
- Showroom Location:Viet Nam
- Showroom Location:India
- Showroom Location:Russia
- Showroom Location:Thailand
- Diameter of Roll(mm):450
- Length of Roll(mm):1200
- Roll Ratio(Front/Back):1:1.27
- Brand Name:HUICAI
- Voltage:220/380V
- Dimension(L*W*H):5200x2000x1830mm
- Certification:CE/ISO9001
- Year:2019
- Weight (KG):11400 KG
- Applicable Industries:Rubber & Plastic Factory
- After-sales Service Provided:Engineers available to service machinery overseas

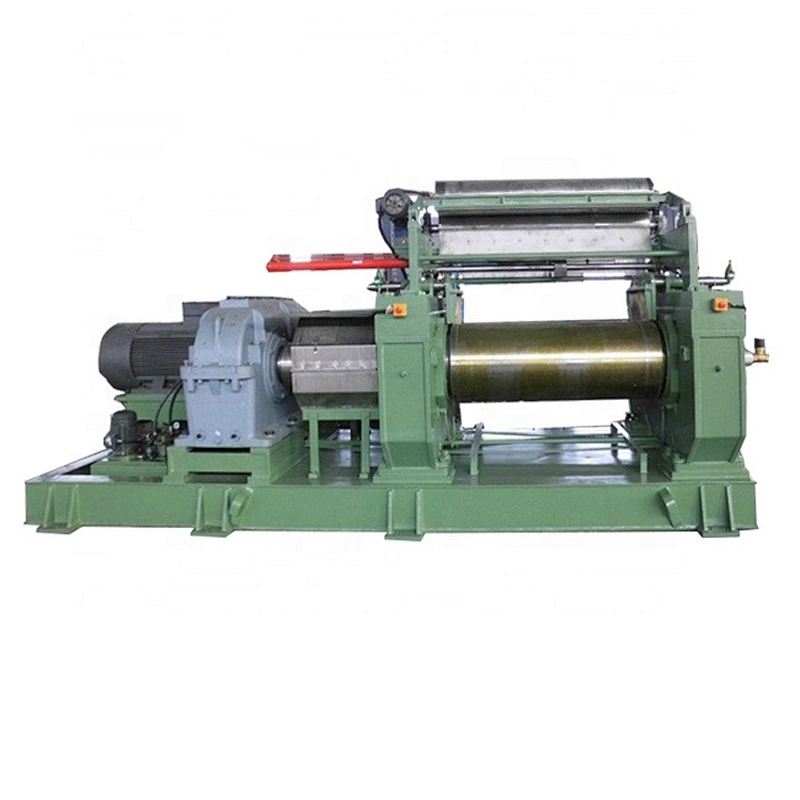

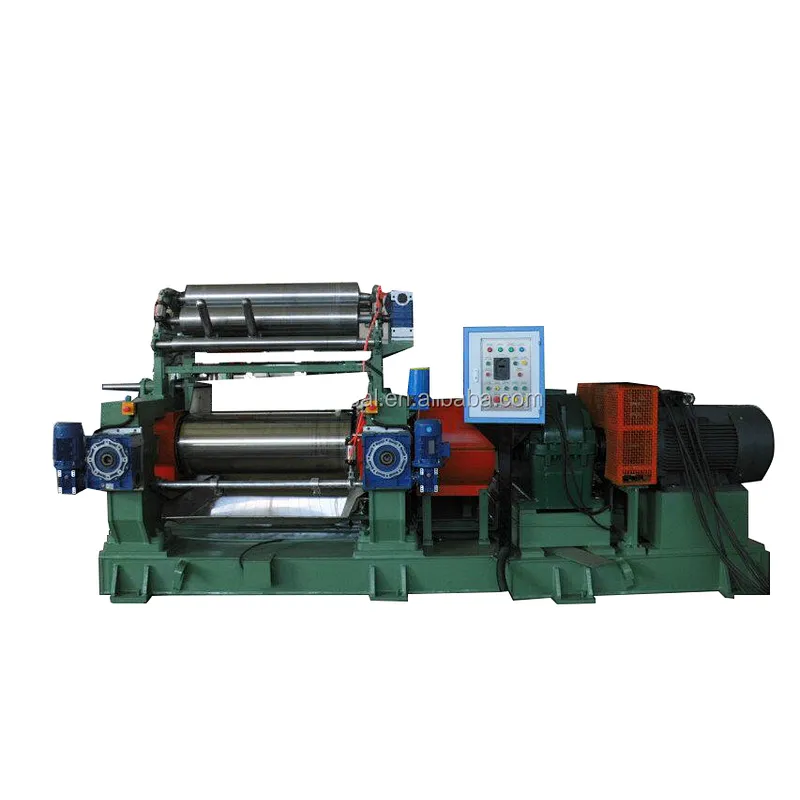

- Type:Rubber Mixing Mill
- working diamter of rolls:450mm
- working length of rolls:1200mm
- front roll surface speed:24.5m/min
- friction ratio of front roll:1:1.27m/min
- capacity per.batch:25-50kg
- driving motor power:55kw
- Overall size:5200*2380*1770mm
- Weight:120000KN

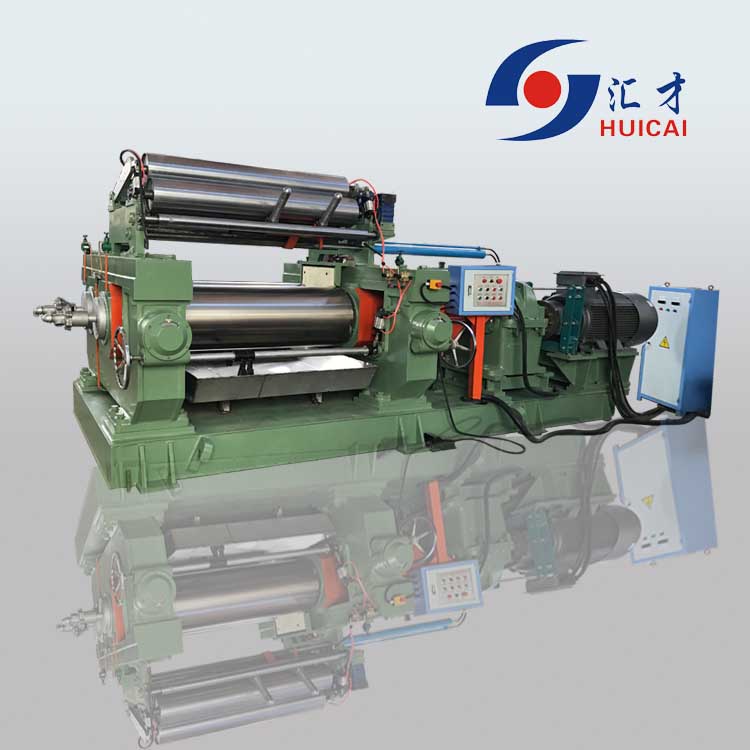

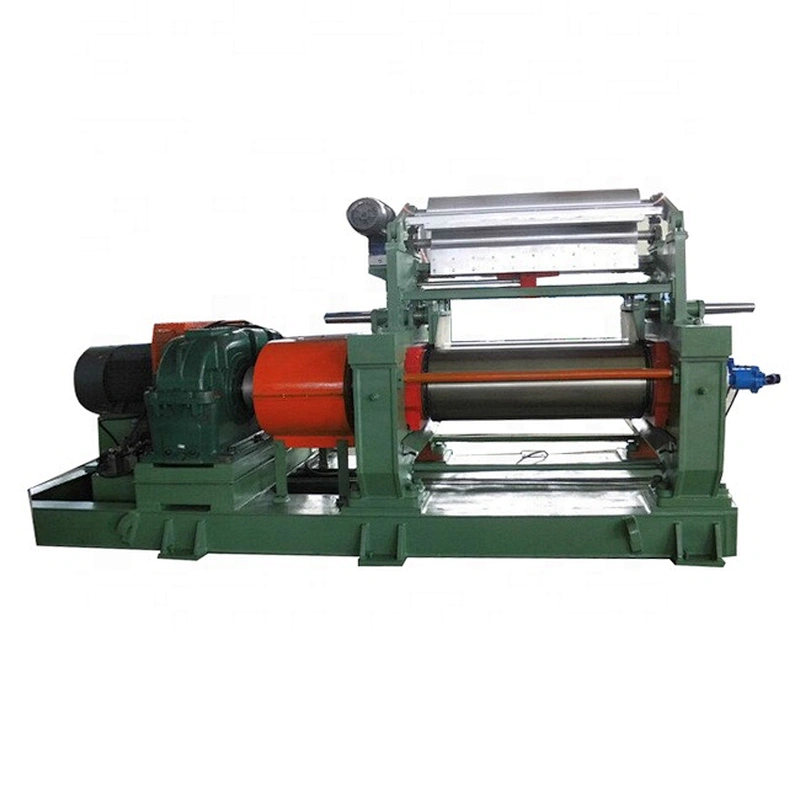

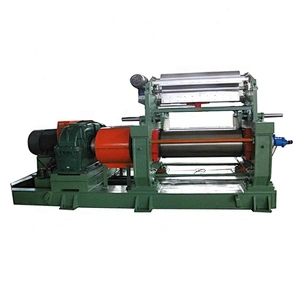

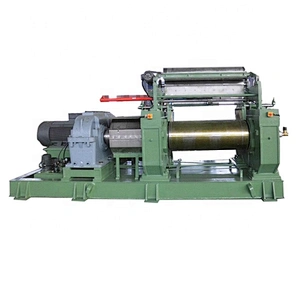

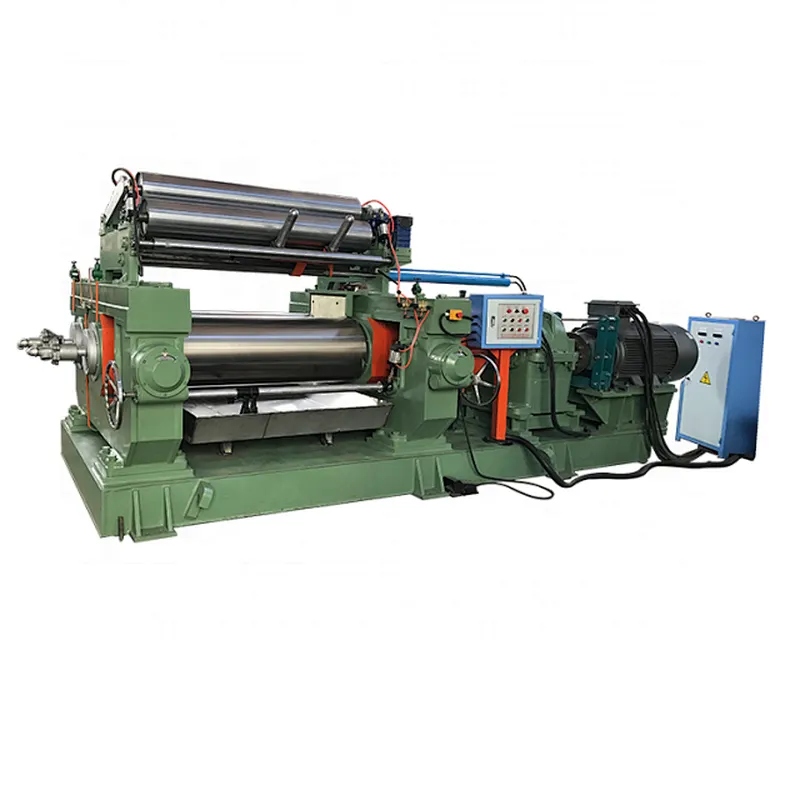

Machine Show
XK-160/250/300/360/400/450/550/560/610/660/710
Rubber mixing mill/Open mixing mill/Mixing mill price
Model | XK-160 | XK-250 | XK-360 | XK-400 | XK-450 | XK-550 |
Roll Diamater | 160mm | 250mm | 360mm | 400mm | 450mm | 550mm |
Roll Working Length | 320mm | 620mm | 900mm | 1000mm | 1200mm | 1530mm |
Front Roll Linear Speed | 9m/min | 16.3m/min | 16.7m/min | 18.65m/min | 21.8m/min | 28m/min |
Speed Ratio of Rolls | 1:1.35 | 1:1.1 | 1:1.25 | 1:1.27 | 1:1.27 | 1:1.2 |
Max. Roll Space | 4.5mm | 8mm | 10mm | 10mm | 12mm | 16mm |
Compound Feeding Capacity | 1-2kg | 10-15kg | 20-25kg | 18-35kg | 50kg | 50-65mm |
Motor Power | 5.5kW | 18.5kW | 30kW | 45kW | 55kW | 110kW |
Dimensions | 1133*920*1394mm | 3200*1115*1345mm | 4200*1780*1760mm | 4471*1850*1760mm | 5005*1790*1830mm | 6300*2230*1900mm |
Gross Wieght | ~2T | ~3.2 | ~6.5T | ~8.3T | ~11.4T | ~22T |
Related Products
FAQ
1.Q:Are you a factory or trading company?
A:We are factory.
2.Q:Where is your factory?How can i visit ?
A:Our factory located in qingdao city.You can fly to qingdao liuting airport,then we can pick you up to our facotry to visit.Warm welcome to visit us.
3.Q:How does your factory control the quality of machines and after sales service?
A:Our machines passed CE,ISO,SGS certification,pls confirm the quality.All our machines have 1 year guarantee, will provide lifetime maintenance.
4.Q:What's your payment term?
A:30% TT in advance, 70% TT before shipment Or L/C at sight.
5.Q:Can you design new product for us?
A:we have a professional development team that make new products according to your requirements.
Send Message
Related Products
Model NO. Scrap rubber machine/factory outlets/ISO 9001/high safety
Model NO. Open Two Roll Rubber Mixing Mill Machine With Ce Certificate

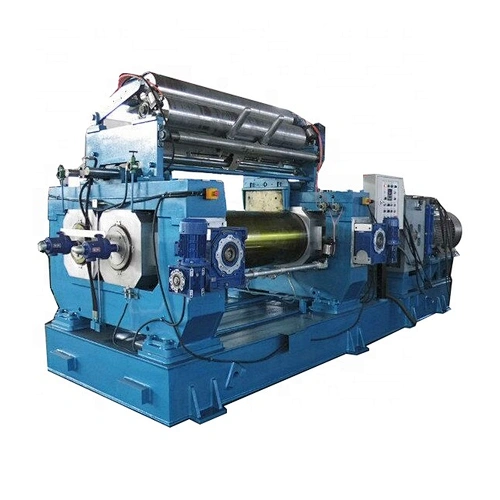

Model NO. rubber band cutting machine silicon rubber mixing mill made in china
