- Place of Origin:CN;SHN

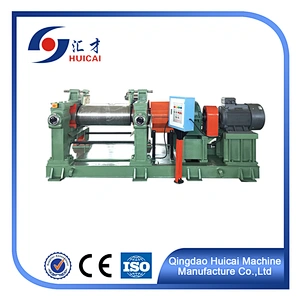

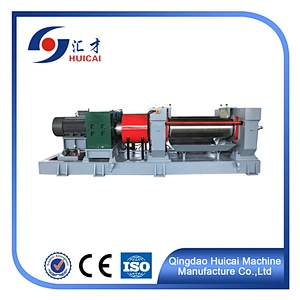

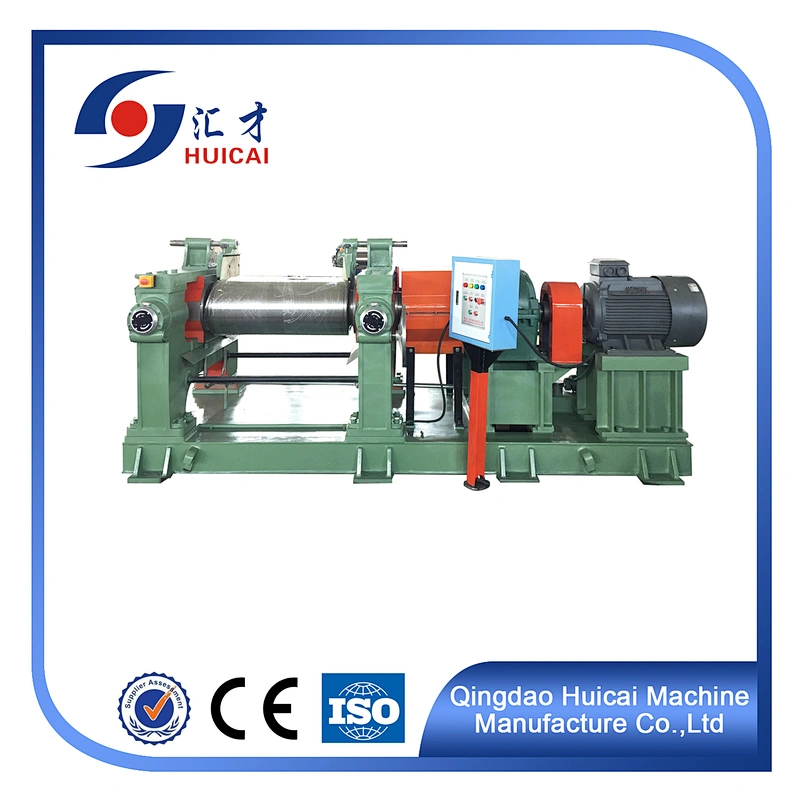

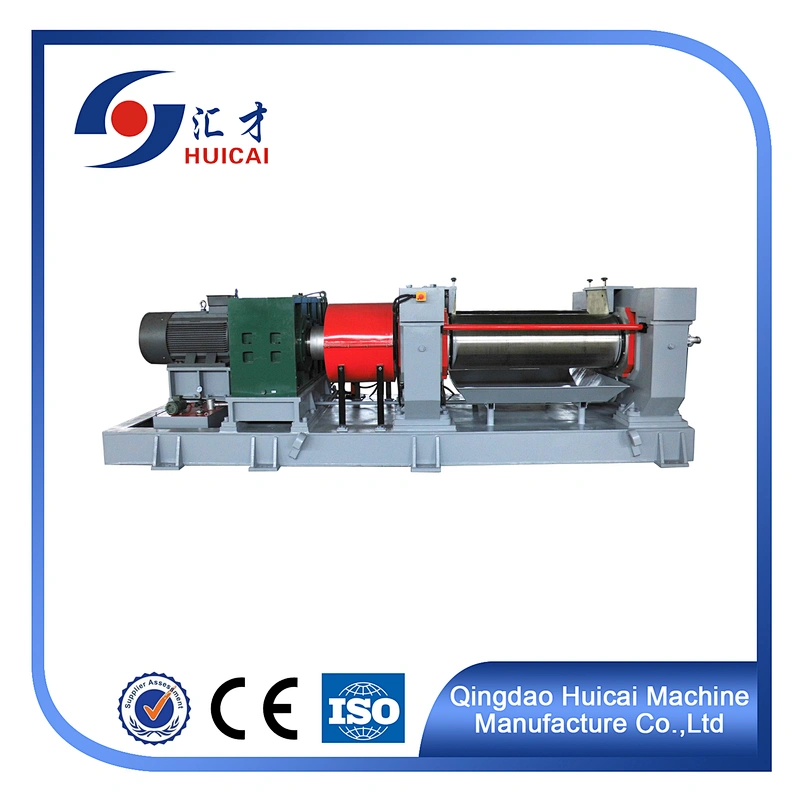

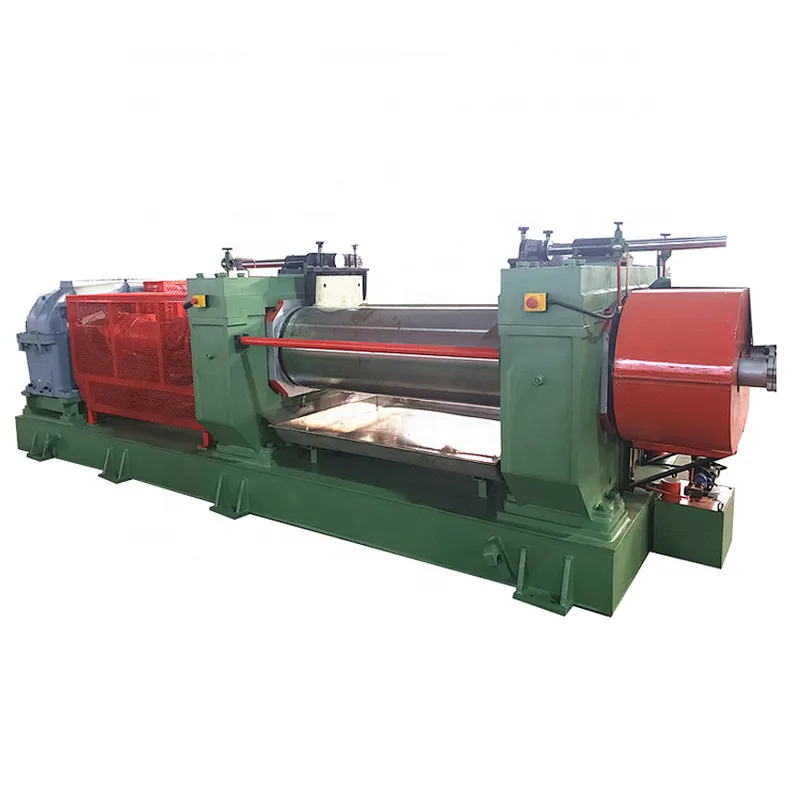

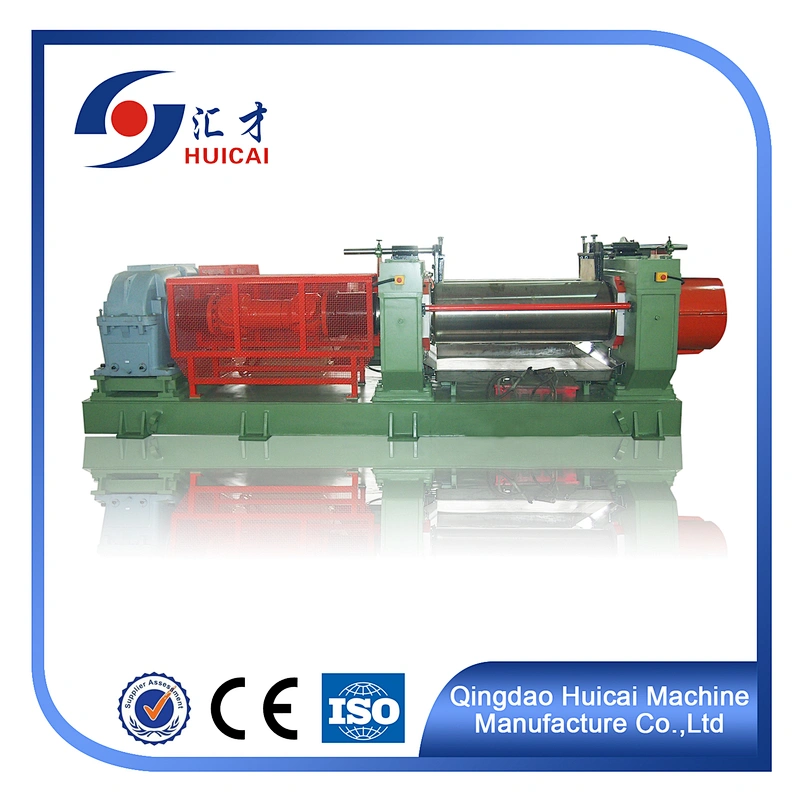

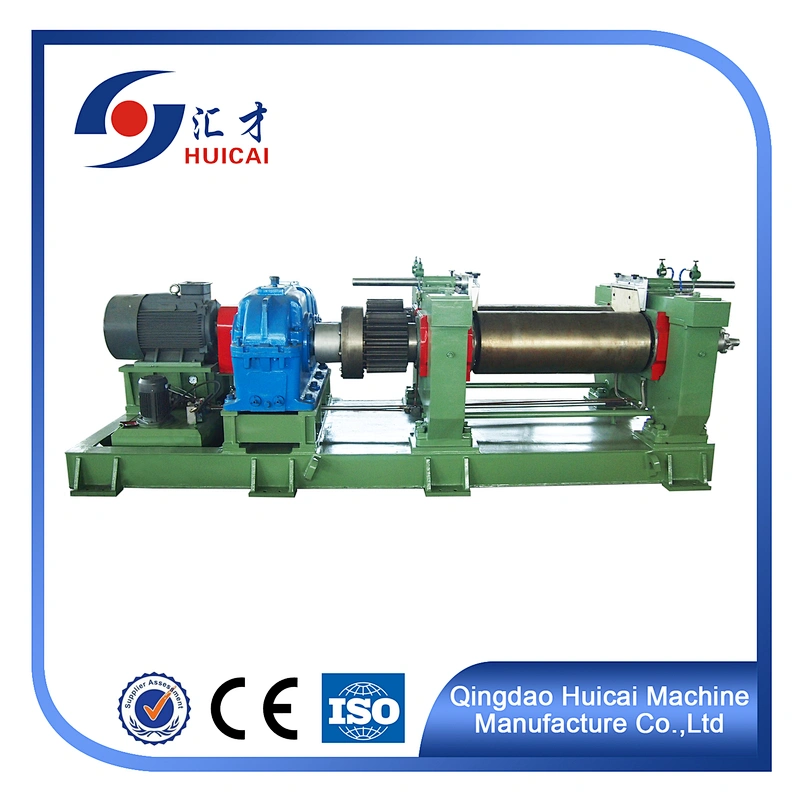

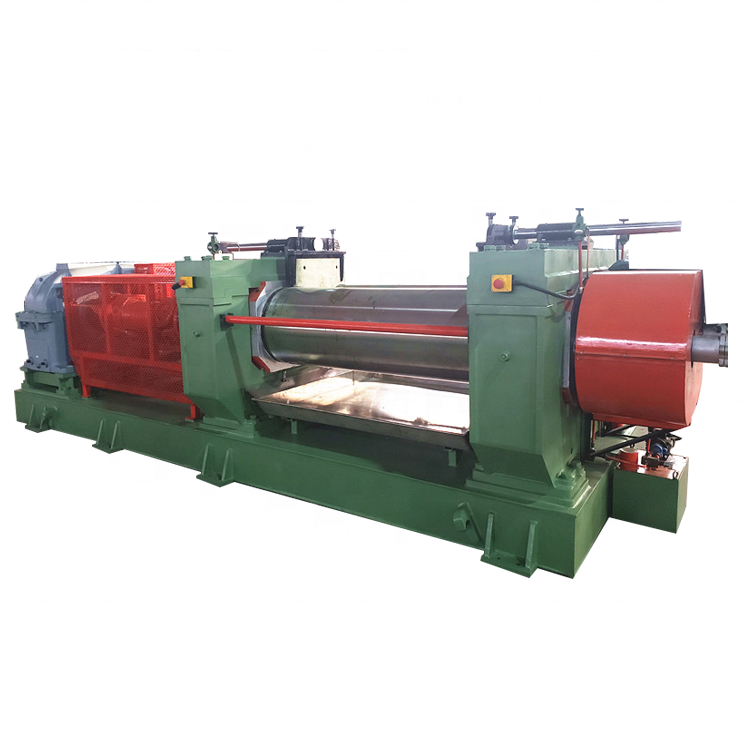

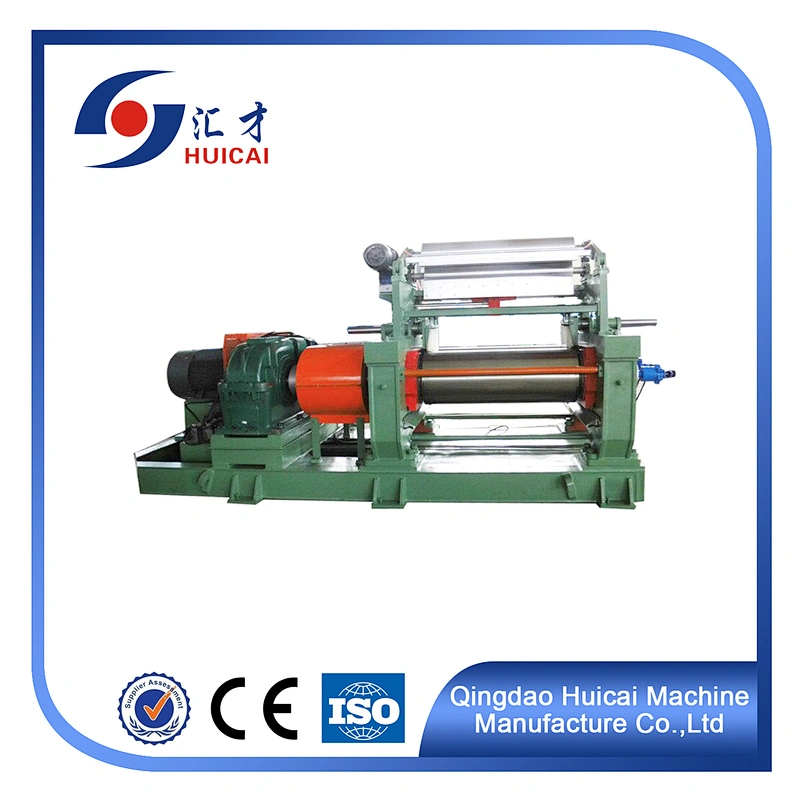

- Type:Open Mixing Mill
- Condition:New
- Tire Machine Type:Other Tire Machine
- Warranty:1 Year
- After-sales Service Provided:Field installation, commissioning and training
- Key Selling Points:Multifunctional
- After Warranty Service:Field maintenance and repair service
- Applicable Industries:Building Material Shops
- Applicable Industries:Manufacturing Plant
- Applicable Industries:Machinery Repair Shops
- Applicable Industries:Construction works
- Applicable Industries:Energy & Mining
- Local Service Location:India
- Local Service Location:Sri Lanka
- Showroom Location:India
- Showroom Location:Sri Lanka
- Brand Name:HuiCai
- Voltage:customer requested
- Dimension(L*W*H):sized
- Certification:CE ISO SGS
- Year:new
- Power (kW):110 kW
- Weight (KG):30000 KG
- After-sales Service Provided:Engineers available to service machinery overseas
- color:green
- waranty:one year life
- certification:ISO 9001
- control:Automatic or Semi-automatic
- Weight:1-55t
- Power(W):1-55kw
This machine is used for reclaimed rubber factory, belt conveyor belt factory factory, and rubber products factory, enterprise, DianLanChang, rubber factory, seal, rubber relevant industries.
Type | XK-160 | XK-230 | XK-250 | XK-300 | XK-360 | XK-400 | XK-450 | XK-560 | XK-550B | XK-660 |
(mm)Working diameter of rolls | 160 | 230 | 250 | 300 | 3360 | 400 | 450 | 560/510 | 550 | 660 |
(mm)Working length of rolls | 320 | 600 | 620 | 750 | 900 | 1000 | 1200 | 1530 | 1500 | 2130 |
(m/min)Front roll surface speed | 8.95 | 10.21 | 14.1 | 15.1 | 16.25 | 18.65 | 24.26 | 27.72 | 27.94 | 28.6 |
Friction ratio | 1:1.35 | 1:1.19 | 1:1.17 | 1:1.25 | 1:1.25 | 1:1.27 | 1:1.27 | 1:1.2 | 1:1.22 | 1:1.24 |
Max.nip(mm) | 4.5 | 7 | 8 | 10 | 10 | 10 | 15 | 15 | 15 | 15 |
Capacity per.batch(kg) | 1~2 | 6~10 | 8~15 | 15~20 | 20~25 | 18~35 | 25~50 | 35~50 | 50~60 | 165 |
Motor power(kw) | 5.5 | 15 | 18.5 | 22 | 30 | 37 | 55 | 90 | 110 | 245 |
(mm)Overall dimension: | 1380*860*1320 | 2800*1200*1120 | 3400*1500*1500 | 3450*1500*1550 | 3780*1850*1750 | 4350*1850*1785 | 5200*2380*1840 | 5845*2284*1978 | 5870*2475*2045 | 7465*3662*2080 |
We can also design and produce according to customer’s requirement. If you are interested in our products or have any questions, please contact us freely. We will try our best to meet your requirement in the first time
Notice:According to the different models have different price, please send your need to type and quantity of the product.
